CA3524F - Regulating Pulse Width Modulator

Name: CA3524F
SKU: CA3524F-109904

Intersil Corporation

📥 Download Datasheet

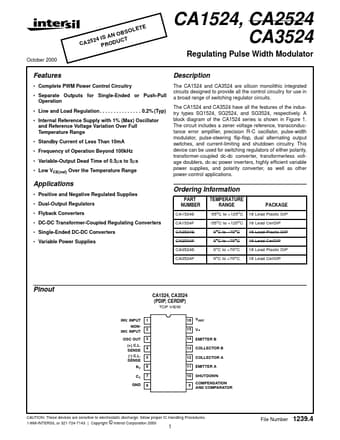

CA3524F Datasheet Preview — Preview of CA3524F PDF

Datasheet Details

Part number	CA3524F
Manufacturer	Intersil Corporation
File Size	206.73 KB
Description	Regulating Pulse Width Modulator
Datasheet	CA3524F_IntersilCorporation.pdf

CA3524F Product details

Description

The CA1524 and CA3524 are silicon monolithic integrated circuits designed to provide all the control circuitry for use in a broad range of switching regulator circuits.

Features

of the industry types SG1524, SG2524, and SG3524, respectively. A block diagram of the CA1524 series is shown in Figure 1. The circuit includes a zener voltage reference, transconductance error ampliﬁer, precision R-C oscillator, pulse-width modulator, pulse-steering ﬂip-ﬂop, dual alternating output switches, and current-limiting and shutdown circuitry. This device can be used for switching regulators of either polarity, transformer-coupled dc-dc converter, transformerless voltage doublers, dc-a.
