PS9117 Datasheet, Optocoupler, CEL

PS9117 Features

  • Optocoupler
  • PULSE WIDTH DISTORTION: |tPHL - tPLH| = 35 ns MAX. HIGH COMMON MODE TRANSIENT IMMUNITY: CMH, CML = ±15 kV/μs MIN. SMALL PACKAGE: 5-Pin SOP TRUTH TABLE LED

PDF File Details

Part number:

PS9117

Manufacturer:

CEL

File Size:

548.35kb

Download:

📄 Datasheet

Description:

10mbps open collector output type 5-pin sop optocoupler. NEC's PS9117 is an optically coupled high-speed, active low type isolator containing a GaAlAs LED on the input side and a photodiode

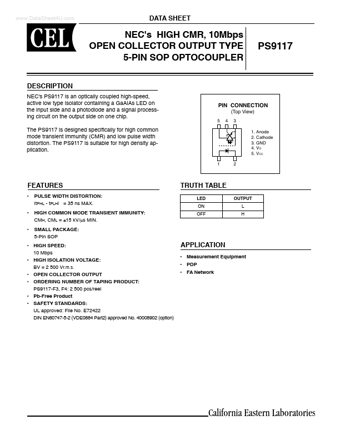

Datasheet Preview: PS9117 📥 Download PDF (548.35kb)
