5-PIN SOP PHOTOCOUPLER

PS9123 Features

* High common mode transient immunity (CMH, CML = ±20 kV/μs TYP.) Small package (SO-5) Pulse width distortion ( | tPHL

* tPLH | = 4 ns TYP.) High-speed (15 Mbps) High isolation voltage (BV = 3 750 Vr.m.s.

PS9123 General Description

The PS9123 is an optically coupled high-speed, totem pole output isolator containing a GaAlAs LED on the input side and a photodiode and a signal processing circuit on the output side on one chip. The PS9123 is specified high CMR, high CTR and pulse width distortion with operating temperature. .

PS9123 Datasheet (529.71 KB)

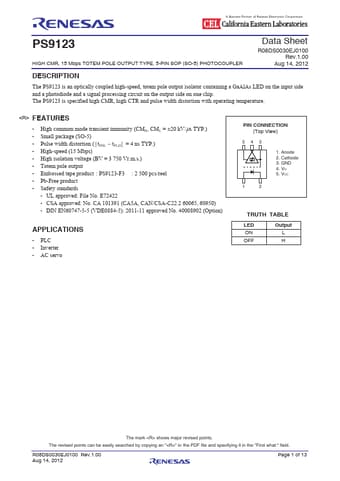

PS9123 Datasheet Preview — Preview of PS9123 PDF

Datasheet Details

Part number:

PS9123

Manufacturer:

California Eastern Labs

File Size:

529.71 KB

Description:

5-pin sop photocoupler.
A Business Partner of Renesas Electronics Corporation. PS9123 HIGH CMR, 15 Mbps TOTEM POLE OUTPUT TYPE, 5-PIN SOP (SO-5) PHOTOCOUPLER R08DS0030EJ010.
