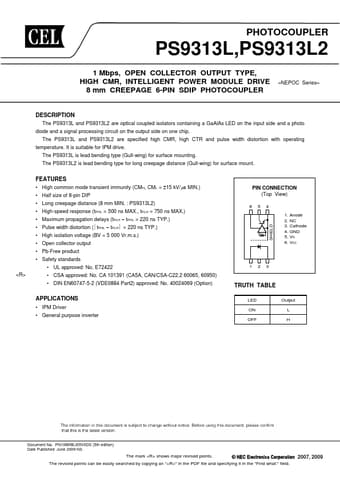

PS9313L2 Datasheet, Photocoupler, California Eastern Labs

PS9313L2 Features

• Photocoupler
• High common mode transient immunity (CMH, CML = ±15 kV/µs MIN.)
• Half size of 8-pin DIP
• Long creepage distance (8 mm MIN. : PS9313L2)
• High-speed r

PDF File Details

Part number:

PS9313L2

Manufacturer:

California Eastern Labs

File Size:

228.83kb

Download:

📄 Datasheet

Description:

1mbps open collector output type high cmr intelligent power module drive 8mm creepage 6-pin sdip photocoupler. The PS9313L and PS9313L2 are optical coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal proce

PS9313L2 Application

• Applications
• IPM Driver
• General purpose inverter Document No. PN10689EJ05V0DS (5th edition) Date Published June 2009 NS The ma
