PS9317L Datasheet, Photocoupler, California Eastern Labs

✔ PS9317L Features

Pulse width distortion (⏐tPHL
tPLH⏐ = 35 ns MAX.)
High common mode transient immunity (CMH, CML = ±15 kV/μs MIN.)
Half size of 8-pin DIP
Long creepage distance

✔ PS9317L Application

Measurement equipment
PDP
FA Network TRUTH TABLE LED ON OFF Output L H Document No. PN10690EJ02V0DS

PDF File Details

California Eastern Labs manufacturer logo

Part number:

PS9317L

Manufacturer:

California Eastern Labs

File Size:

240.82kb

Download:

📄 Datasheet

Description:

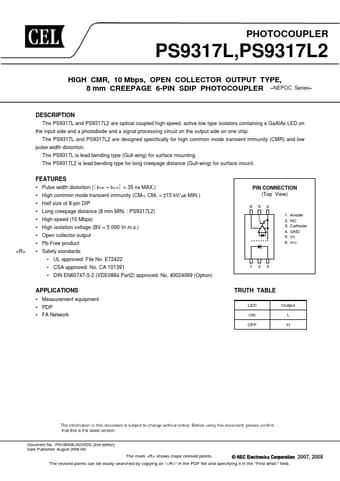

High cmr 10mbps open collector output type 8mm creepage 6-pin sdip photocoupler. The PS9317L and PS9317L2 are optical coupled high-speed, active low type isolators containing a GaAlAs LED on the input side and a ph
