PS9313L Datasheet, Photocoupler, California Eastern Labs

✔ PS9313L Features

High common mode transient immunity (CMH, CML = ±15 kV/µs MIN.)
Half size of 8-pin DIP
Long creepage distance (8 mm MIN. : PS9313L2)
High-speed response (tPHL = 5

✔ PS9313L Application

IPM Driver
General purpose inverter Document No. PN10689EJ05V0DS (5th edition) Date Published June 2009

PDF File Details

California Eastern Labs manufacturer logo

Part number:

PS9313L

Manufacturer:

California Eastern Labs

File Size:

228.83kb

Download:

📄 Datasheet

Description:

1mbps open collector output type high cmr intelligent power module drive 8mm creepage 6-pin sdip photocoupler. The PS9313L and PS9313L2 are optical coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal proce

📥 Download PDF (228.83kb)

📁 Related Datasheet

PS9313L2 - 1Mbps OPEN COLLECTOR OUTPUT TYPE HIGH CMR INTELLIGENT POWER MODULE DRIVE 8mm CREEPAGE 6-PIN SDIP PHOTOCOUPLER (California Eastern Labs)

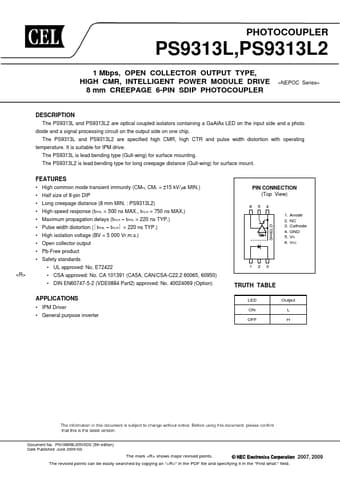

PHOTOCOUPLER PS9313L,PS9313L2 1 Mbps, OPEN COLLECTOR OUTPUT TYPE, HIGH CMR, INTELLIGENT POWER MODULE DRIVE 8 mm CREEPAGE 6-PIN SDIP PHOTOCOUPLER −NEP.

PS9317L - HIGH CMR 10Mbps OPEN COLLECTOR OUTPUT TYPE 8mm CREEPAGE 6-PIN SDIP PHOTOCOUPLER (California Eastern Labs)
PHOTOCOUPLER PS9317L,PS9317L2 HIGH CMR, 10 Mbps, OPEN COLLECTOR OUTPUT TYPE, 8 mm CREEPAGE 6-PIN SDIP PHOTOCOUPLER −NEPOC Series− DESCRIPTION The PS.

PS9317L2 - HIGH CMR 10Mbps OPEN COLLECTOR OUTPUT TYPE 8mm CREEPAGE 6-PIN SDIP PHOTOCOUPLER (California Eastern Labs)
PHOTOCOUPLER PS9317L,PS9317L2 HIGH CMR, 10 Mbps, OPEN COLLECTOR OUTPUT TYPE, 8 mm CREEPAGE 6-PIN SDIP PHOTOCOUPLER −NEPOC Series− DESCRIPTION The PS.

PS9302L - HIGH CMR IGBT GATE DRIVE 8-PIN SDIP PHOTOCOUPLER (NEC)
DATA SHEET .. PHOTOCOUPLER PS9302L 2.5 A OUTPUT CURRENT, HIGH CMR IGBT GATE DRIVE 8-PIN SDIP PHOTOCOUPLER DESCRIPTION The PS9302L i.

PS9303L - 6-PIN SDIP PHOTOCOUPLER (CEL)
PHOTOCOUPLER PS9303L,PS9303L2 1 Mbps TOTEM POLE OUTPUT TYPE HIGH CMR, IPM DRIVER 6-PIN SDIP PHOTOCOUPLER NEPOC Series DESCRIPTION The PS9303L and P.

PS9303L2 - 6-PIN SDIP PHOTOCOUPLER (CEL)
PHOTOCOUPLER PS9303L,PS9303L2 1 Mbps TOTEM POLE OUTPUT TYPE HIGH CMR, IPM DRIVER 6-PIN SDIP PHOTOCOUPLER NEPOC Series DESCRIPTION The PS9303L and P.

PS9305L - 8-PIN SDIP PHOTOCOUPLER (Renesas)
Preliminary Data Sheet PS9305L,PS9305L2 2.5 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN SDIP PHOTOCOUPLER R08DS0013EJ0200 Rev.2.00 Sep 07, 20.

PS9305L2 - 8-PIN SDIP PHOTOCOUPLER (Renesas)
Preliminary Data Sheet PS9305L,PS9305L2 2.5 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN SDIP PHOTOCOUPLER R08DS0013EJ0200 Rev.2.00 Sep 07, 20.

PS9306L - 6-PIN SDIP PHOTOCOUPLER (Renesas)
Preliminary Data Sheet PS9306L,PS9306L2 0.6 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 6-PIN SDIP PHOTOCOUPLER R08DS0017EJ0100 Rev.1.00 Nov 10, 20.

PS9306L2 - 6-PIN SDIP PHOTOCOUPLER (Renesas)
Preliminary Data Sheet PS9306L,PS9306L2 0.6 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 6-PIN SDIP PHOTOCOUPLER R08DS0017EJ0100 Rev.1.00 Nov 10, 20.
