UPG2022TB Datasheet, Switch, CEL

UPG2022TB Features

  • Switch
  • OPERATING FREQUENCY: f = 4.8 to 5.85 GHz
  • LOW INSERTION LOSS: 0.8 dB TYP. @ 4.9 to 5.2 GHz 0.9 dB TYP. @ 5.8 GHz
  • POWER HANDLING: Pin (0.1dB) = +30 dBm TYP.

PDF File Details

Part number:

UPG2022TB

Manufacturer:

CEL

File Size:

643.33kb

Download:

📄 Datasheet

Description:

4.8 to 5.85 ghz high power gaas mmic spdt switch. NEC's UPG2022TB is a high power GaAs MMIC SPDT (Single Pole Double Throw) switch. This device can operate from 4.8 to 5.85 GHz with l

Datasheet Preview: UPG2022TB 📥 Download PDF (643.33kb)

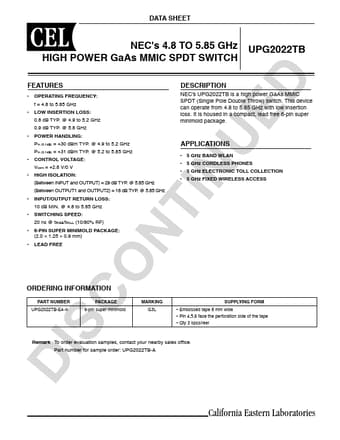

Page 2 of UPG2022TB Page 3 of UPG2022TB

UPG2022TB Application

  • Applications
  • 5 GHz BAND WLAN
  • 5 GHz CORDLESS PHONES
  • 5 GHz ELECTRONIC TOLL COL
