CLM021818

Limiters

CLM021818 Features

* ™ Coverage From 0.1 to 65.0 GHz (Octave/Multioctave) ™ Up to 2 Watt CW and 150W Peak (1 µsec) Power Handling Capability ™ Fast Response and Short Recovery Time (10 to 20 µsec typical) ™ Compact/Rugged Thin-Film Construction ™ Economically Priced APPLICATIONS: ™ Test Set Up ™ Receiver Protection ™

CLM021818 General Description

Cernex’s CLM series limiters are designed for use in a wide range of general purpose applications such as laboratory test equipment, instrumentation and other applications. Reliable operation is achieved using rugged stripline circuit construction. SPECIFICATIONS: Model Number CLMU1U504 CLMU10105 .

CLM021818 Datasheet (174.39 KB)

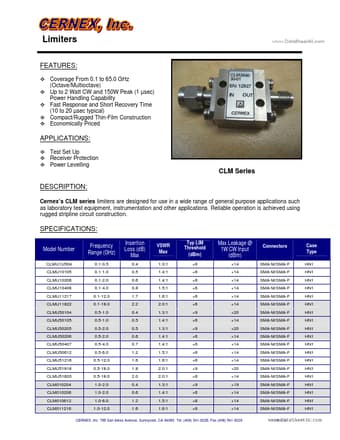

Preview of CLM021818 PDF

Datasheet Details

Part number:

CLM021818

Manufacturer:

CERNEX

File Size:

174.39 KB

Description:

Limiters.
