CLMU1U504 Limiters

Cernex’s CLM series limiters are designed for use in a wide range of general purpose applications such as laboratory test equipment, instrumentation and other applications. Reliable operation is achieved using rugged stripline circuit construction. SPECIFICATIONS: Model Number CLMU1U504 CLMU10105 .

CLMU1U504 Features

* Coverage From 0.1 to 65.0 GHz (Octave/Multioctave) Up to 2 Watt CW and 150W Peak (1 µsec) Power Handling Capability Fast Response and Short Recovery Time (10 to 20 µsec typical) Compact/Rugged Thin-Film Construction Economically Priced APPLICATIONS: Test Set Up Receiver Protection

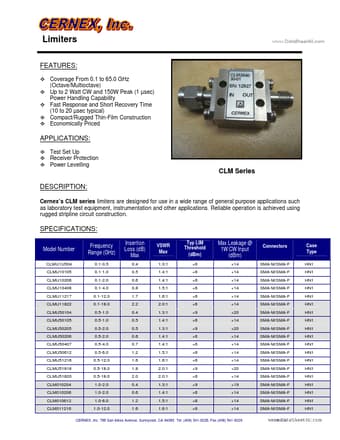

CLMU1U504 Datasheet (174.39 KB)
