XGZP168 - Unamplified Pressure Sensor

Datasheet Summary

Features

Range: -100～0…1kPaG…1000kPaG.
MEMS technology, solid-state reliability.
Good linearity.
Surface mounting or Through hole soldering.
For non-corrosive gas or air.
Working temp. : -30℃～+100℃(-22℉～+212℉).
Gage pressure type(Positive&Vacuum pressure).
Easy to use and embed in OEM equipment.

CFSensor

📥 Download Datasheet

Datasheet Details

Part number	XGZP168
Manufacturer	CFSensor
File Size	727.11 KB
Description	Unamplified Pressure Sensor
Datasheet	XGZP168 Datasheet

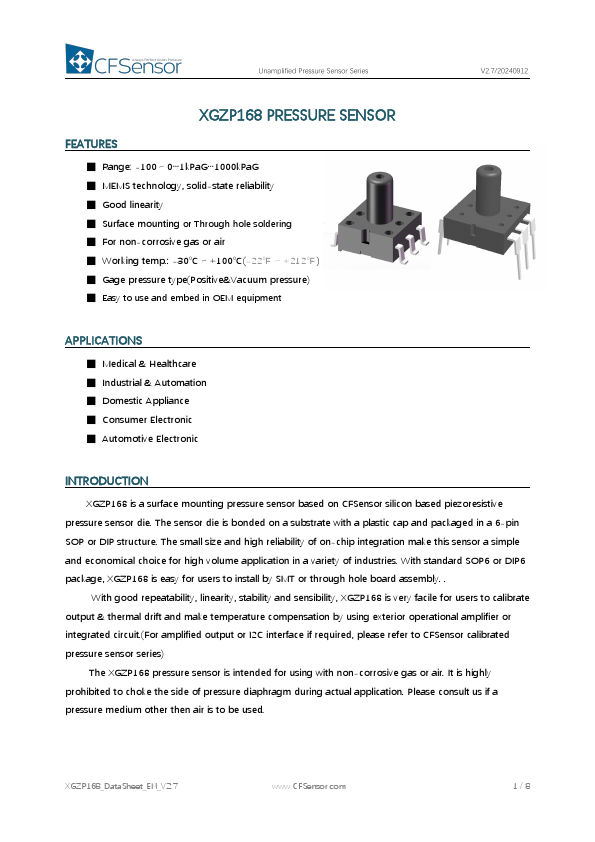

Additional preview pages of the XGZP168 datasheet.

📁 Similar Datasheet

Other Datasheets by CFSensor

XGZP160 - Unamplified Pressure Sensor
XGZP161 - Unamplified Pressure Sensor
XGZP163 - Unamplified Pressure Sensor
XGZP164 - Unamplified Pressure Sensor
XGZP165 - Unamplified Pressure Sensor
XGZP167 - Unamplified Pressure Sensor
XGZP131 - Unamplified Pressure Sensor
XGZP170 - Unamplified Pressure Sensor

Full PDF Text Transcription

Click to expand full text

Unamplified Pressure Sensor Series V2.7/20240912 XGZP168 PRESSURE SENSOR FEATURES ■ Range: -100～0…1kPaG…1000kPaG ■ MEMS technology, solid-state reliability ■ Good linearity ■ Surface mounting or Through hole soldering ■ For non-corrosive gas or air ■ Working temp.: -30℃～+100℃(-22℉～+212℉) ■ Gage pressure type(Positive&Vacuum pressure) ■ Easy to use and embed in OEM equipment APPLICATIONS ■ Medical & Healthcare ■ Industrial & Automation ■ Domestic Appliance ■ Consumer Electronic ■ Automotive Electronic INTRODUCTION XGZP168 is a surface mounting pressure sensor based on CFSensor silicon based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP or DIP structure.
