XGZP191 - Calibrated mV Pressure Sensor

Datasheet Summary

Features

  • Range: 0～10/50/100/200kPa.
  • MEMS technology, Solid-state reliability.
  • Barb inlet pipe.
  • Laser trimmed mV output.
  • Temperature compensated.
  • Working temp. : -30℃～+85℃(-22℉～+185℉).
  • Gage pressure type.
  • Easy to use and embed in OEM equipment.

📥 Download Datasheet

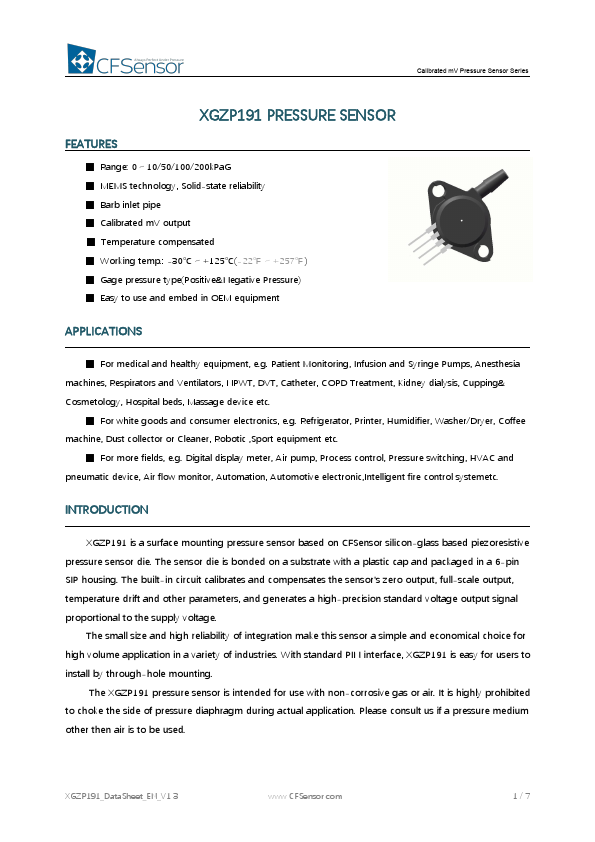

Datasheet preview – XGZP191

Datasheet Details

Part number XGZP191
Manufacturer CFSensor
File Size 447.55 KB
Description Calibrated mV Pressure Sensor
Datasheet download datasheet XGZP191 Datasheet

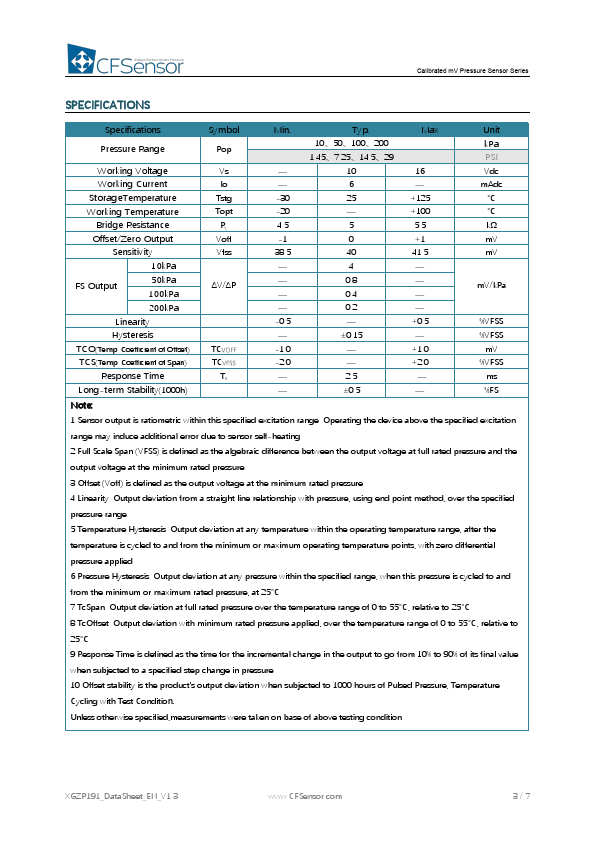

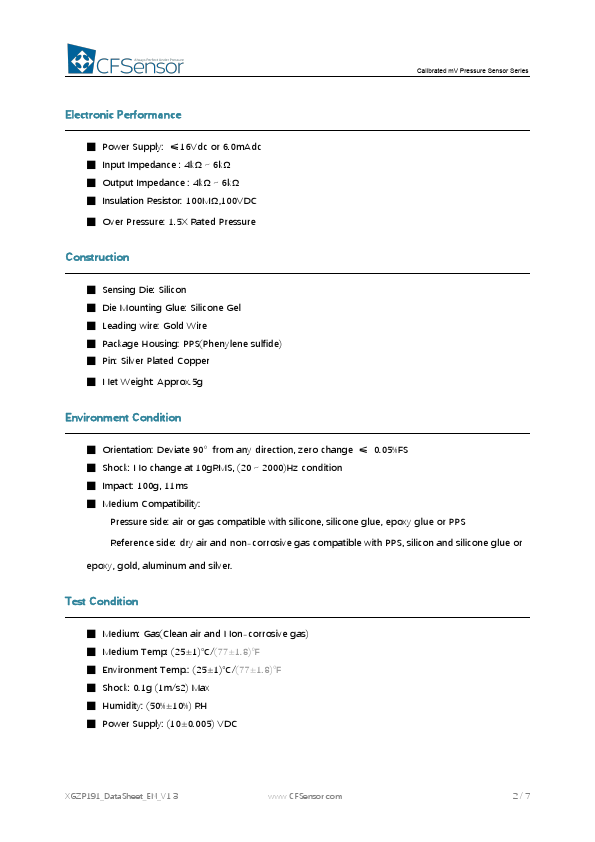

Additional preview pages of the XGZP191 datasheet.

📁 Similar Datasheet

Other Datasheets by CFSensor
  • XGZP190 - Unamplified Pressure Sensor
  • XGZP192 - Trimmed Pressure Sensor
  • XGZP197 - Trimmed Pressure Sensor
  • XGZP131 - Unamplified Pressure Sensor
  • XGZP160 - Unamplified Pressure Sensor
  • XGZP161 - Unamplified Pressure Sensor
  • XGZP163 - Unamplified Pressure Sensor
  • XGZP164 - Unamplified Pressure Sensor

Full PDF Text Transcription

Click to expand full text
Trimmed Pressure Sensor Series XGZP191 PRESSURE SENSOR FEATURES ■ Range: 0～10/50/100/200kPa ■ MEMS technology, Solid-state reliability ■ Barb inlet pipe ■ Laser trimmed mV output ■ Temperature compensated ■ Working temp.: -30℃～+85℃(-22℉～+185℉) ■ Gage pressure type ■ Easy to use and embed in OEM equipment APPLICATIONS ■ Medical & Healthcare ■ Industrial & Automation ■ Domestic Appliance ■ Consumer Electronic ■ Automotive Electronic V1.7/20240912 INTRODUCTION XGZP191 is a through hole mounted pressure sensor based on CFSensor silicon piezo-resistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 4-pin housing.
