2W10, 2W10-CHENG SINGLE-PHASE SILICON BRIDGE

CHENG-YI

2W10 Description

2W005 thru 2W10 SERIES SINGLE-PHASE SILICON BRIDGE CHENG- YI ELECTRONIC VOLTAGE RANGE 50 TO 1000 VOLTS CURRENT 2.0 Amperes .

2W10 Features

* Surge overload rating-50 amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Mounting Position: Any MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 250C ambient temperature unless otherwise specified

📥 Download Datasheet

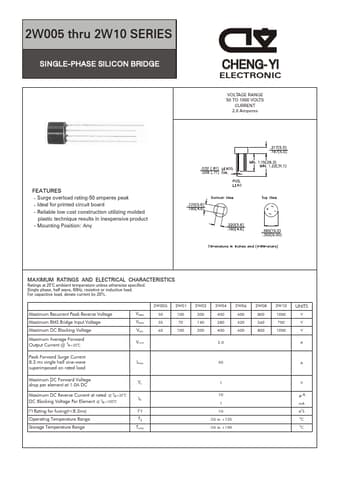

2W10 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2W10, 2W10-CHENG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: 2W10, 2W10-CHENG
Manufacturer: CHENG-YI
File Size: 109.94 KB
Datasheet: 2W10-CHENG-YI.pdf
Description: SINGLE-PHASE SILICON BRIDGE
Note: This datasheet PDF includes multiple part numbers: 2W10, 2W10-CHENG.
Please refer to the document for exact specifications by model.
