2W10MG

GLASS PASSIVATED BRIDGE RECTIFIERS

2W10MG Features

* Surge overload rating -60 amperes peak

* Ldeal for printed circuit board

* Reliable low cost construction utilizing molded plastic technique results in expensive product

* Mounting Position :Any

* Lead:sliver plated copper lead. 2WOXG/2WOXMG SERIES REVERSE VOLTAGE - 50 to 1000 Vol

2W10MG Datasheet (98.76 KB)

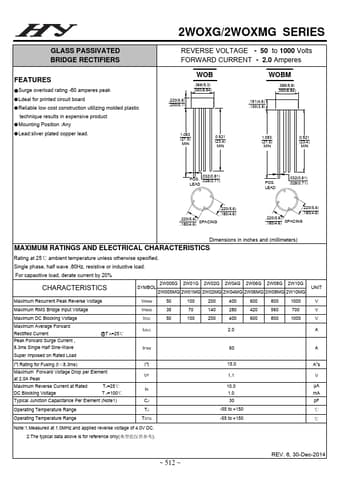

Preview of 2W10MG PDF

Datasheet Details

Part number:

2W10MG

Manufacturer:

HY

File Size:

98.76 KB

Description:

Glass passivated bridge rectifiers.
