TCS2001 - Ultra-low-Rdson load switch

TCS2001 Description

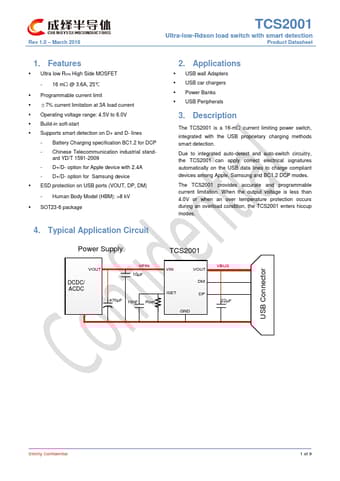

Rev 1.0 * March 2018 TCS2001 Ultra-low-Rdson load switch with smart detection Product Datasheet 1..
The TCS2001 is a 16-mΩ current limiting power switch, integrated with the USB proprietary charging methods smart detection.

TCS2001 Features

* Ultra low RON High Side MOSFET - 16 mΩ @ 3.6A, 25℃
* Programmable current limit
* ±7% current limitation at 3A load current
* Operating voltage range: 4.5V to 6.0V
* Build-in soft-start
* Supports smart detection on D+ and D- lines - Battery Charging specification BC1.2 for

TCS2001 Applications

* USB wall Adapters
* USB car chargers
* Power Banks

📥 Download Datasheet

Preview of TCS2001 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TCS2001
Manufacturer
CHENGYI
File Size
599.40 KB
Datasheet
TCS2001-CHENGYI.pdf
Description
Ultra-low-Rdson load switch
