ICN2012 - 8-Channel Power Switch

General Description

ICN2012 is a 8-channel power switch for LED display.ICN2012 Integrated 74HC138 (3-Line to 8-Line Decoders) and 8 Channel P-Channel Enhancement Mode MOSFET driver.

Key Features

  • VDD 1 A2 2 OUT0 3 OUT1 4 OUT2 5 OUT3 6 E1 7 GND 8 ICN2012 SOP16 16 A1 15 A0 14 OUT7 13 OUT6 12 OUT5 11 OUT4 10 E2 9 VDD.
  • Integrated 74HC138 (3-Line to 8-Line Decoders).
  • 8 Channel P-Channel Enhancement Mode MOSFET driver.
  • P-MOSTEF Rds(ON) 100 mΩ，Max output current 2.5A.
  • Incorporate Tow Enable Inputs to Simplify Cascading.
  • Ghosting Reduction.
  • Caterpillar Removal for LED Short.
  • LED Protection.
  • Max Power Dissipation.

📥 Download Datasheet

Datasheet Details

Part number ICN2012
Manufacturer CHIPONE
File Size 261.76 KB
Description 8-Channel Power Switch
Datasheet download datasheet ICN2012 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by CHIPONE

Part Number Description
ICN2024 16-bit Constant Current LED Driver
ICN2038 16-Channel Constant Current LED Sink Driver
ICN2038S 16-Channel Constant Current LED Sink Driver
ICN2595 16-channel constant current output LED driver chip
ICN74HC138 3-8 Decoder

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

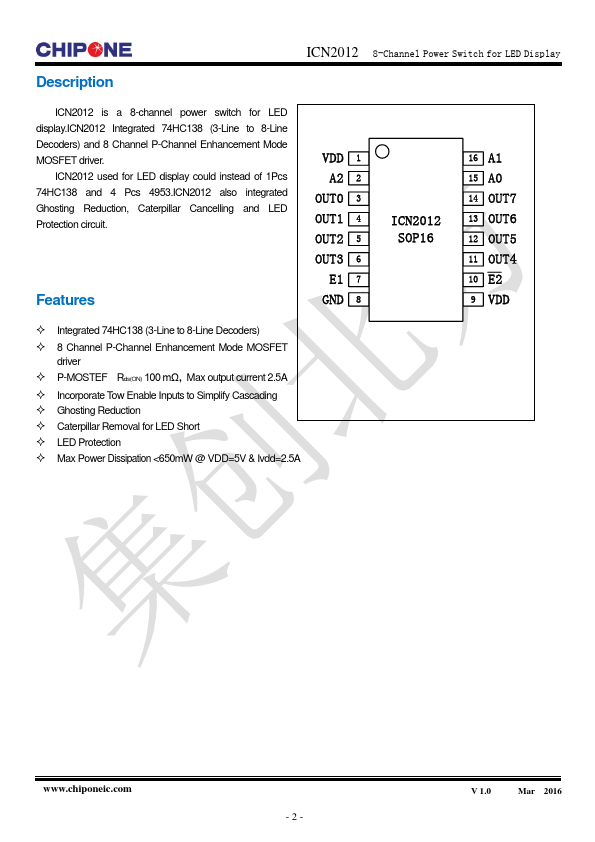

ICN2012 (8-Channel Power Switch for LED Display) Description ICN2012 8-Channel Power Switch for LED Display ICN2012 is a 8-channel power switch for LED display.ICN2012 Integrated 74HC138 (3-Line to 8-Line Decoders) and 8 Channel P-Channel Enhancement Mode MOSFET driver. ICN2012 used for LED display could instead of 1Pcs 74HC138 and 4 Pcs 4953.ICN2012 also integrated Ghosting Reduction, Caterpillar Cancelling and LED Protection circuit. Features VDD 1 A2 2 OUT0 3 OUT1 4 OUT2 5 OUT3 6 E1 7 GND 8 ICN2012 SOP16 16 A1 15 A0 14 OUT7 13 OUT6 12 OUT5 11 OUT4 10 E2 9 VDD  Integrated 74HC138 (3-Line to 8-Line Decoders)  8 Channel P-Channel Enhancement Mode MOSFET driver  P-MOSTEF Rds(ON) 100 mΩ，Max output current 2.
