CS7123

3-way 10-bit high speed video D/A converter

CS7123 Features

* 240 MSPS Throughput Rate

* Triple 10-Bit D/A Converters

* SFDR

* 70 dB at fCLK = 50 M HZ, fOUT = 1 M HZ

* 53 dB at fCLK = 140 M HZ, fOUT = 40 M HZ

* RS-343A/RS-170 Compatible Output

* Complementary Outputs

* DAC Output Current Range : 2 mA to 26 mA

CS7123 General Description

The CS7123 is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface and a high impedance, analog output current source . The CS7123 has three separate 10-b.

CS7123 Datasheet (430.27 KB)

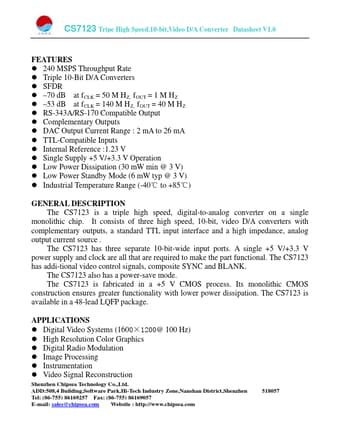

Preview of CS7123 PDF

Datasheet Details

Part number:

CS7123

Manufacturer:

CHIPSEA

File Size:

430.27 KB

Description:

3-way 10-bit high speed video d/a converter.
