RC8005 Datasheet - CHONGQING PINGYANG ELECTRONICS

(RC8005 - RC810) SINGLE-PHASE SILICON BRIDGE RECTIFIER

RC8005 Features

* Surge overload ratings-150 Amperes

* Good for printed circuit board assembly C-1 .165(4.2) .157(4.0) MECHANICAL DATA

* Case: Silicon rubber passivated

* Epoxy: UL 94V-0 rate flame retardant

* Lead: MIL-STD- 202E, Method 208 guaranteed

* Polarity: As marked

* Mounting positio

RC8005 Datasheet (61.18 KB)

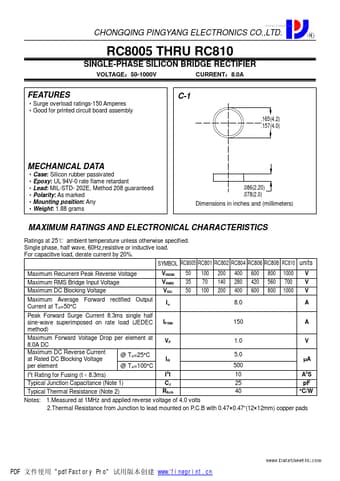

Preview of RC8005 PDF

Datasheet Details

Part number:

RC8005

Manufacturer:

CHONGQING PINGYANG ELECTRONICS

File Size:

61.18 KB

Description:

(rc8005 - rc810) single-phase silicon bridge rectifier.
www.DataSheet4U.com CHONGQING PINGYANG ELECTRONICS CO.,LTD. RC8005 THRU RC810 SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE：50-1000V CURRENT：8.0A F.
