RC808, RC810, (RC8005 - RC810) SINGLE-PHASE SILICON BRIDGE RECTIFIER

www.DataSheet4U.com CHONGQING PINGYANG ELECTRONICS CO.,LTD.RC8005 THRU RC810 SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE：50-1000V CURRENT：8.0A F.

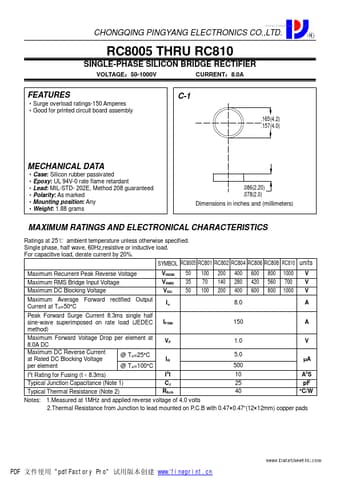

datasheet Preview Page 1 from Datasheet4u.com

RC810_CHONGQINGPINGYANGELECTRONICS.pdf

RC808 Datasheet Preview — This datasheet PDF includes multiple part numbers: RC808, RC810. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RC808, RC810

Manufacturer:

CHONGQING PINGYANG ELECTRONICS

File Size:

61.18 KB

Description:

(RC8005 - RC810) SINGLE-PHASE SILICON BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: RC808, RC810.
Please refer to the document for exact specifications by model.

Features

* Surge overload ratings-150 Amperes
* Good for printed circuit board assembly C-1 .165(4.2) .157(4.0) MECHANICAL DATA
* Case: Silicon rubber passivated
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD- 202E, Method 208 guaranteed
* Polarity: As marked
* Mounting positio
