CHB75-24S25, CHB75-12S25, 37.5 TO 75 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT

︳ .

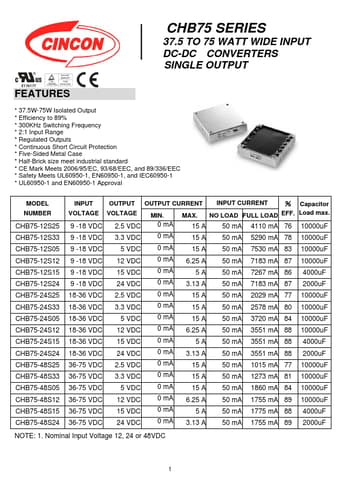

datasheet Preview Page 1 from Datasheet4u.com

CHB75-12S25-CINCON.pdf

CHB75-24S25 Datasheet Preview — This datasheet PDF includes multiple part numbers: CHB75-24S25, CHB75-12S25. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CHB75-24S25, CHB75-12S25

Manufacturer:

CINCON

File Size:

98.60 KB

Description:

37.5 TO 75 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT

Note:

This datasheet PDF includes multiple part numbers: CHB75-24S25, CHB75-12S25.
Please refer to the document for exact specifications by model.

Features

* CHB75 SERIES 37.5 TO 75 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT
* 37.5W-75W Isolated Output
* Efficiency to 89%
* 300KHz Switching Frequency
* 2:1 Input Range
* Regulated Outputs
* Continuous Short Circuit Protection
* Five-Sided Metal Case
* Half-Brick size
