CHB75-24D05-3V3 Datasheet - FranMar

CHB75-24D05-3V3 75 Watts Dual Outputs DC-DC Converter

CHB75-24D/48D 75 Watts Dual Outputs DC - DC Converter 75W Isolated Output / 2:1 Input Range Regulated Output / Efficiency To 84% Continuous Short Circuit Protection 400KHz Switching Frequency Half-Brick Size Meet Industrial standard CE Mark Meets 2004/108/EC / UL60950-1 Approval Total Power 75W with 15A Maximum Per Channel Model Number Input Voltage (VDC) Output Voltage (VDC) Output Current (A) C US EFF. Capacitor % Load Max. CHB75-24D05-3V3 18-36.

CHB75-24D05-3V3-FranMar.pdf

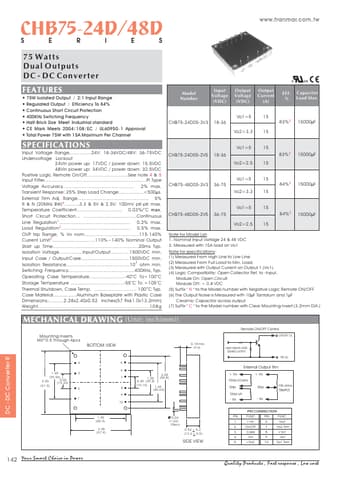

Preview of CHB75-24D05-3V3 PDF

Datasheet Details

Part number:

CHB75-24D05-3V3

Manufacturer:

FranMar

File Size:

229.68 KB

Description:

75 watts dual outputs dc-dc converter.
