CQE50W-24S05, CQE50W-24S3V3 Datasheet - CINCON

CQE50W-24S05, CQE50W-24S3V3, DC-DC CONVERTERS

V12 ︳CQE50W SERIES 50 WATT 4:1 INPUT DC-DC CONVERTERS SINGLE OUTPUT .

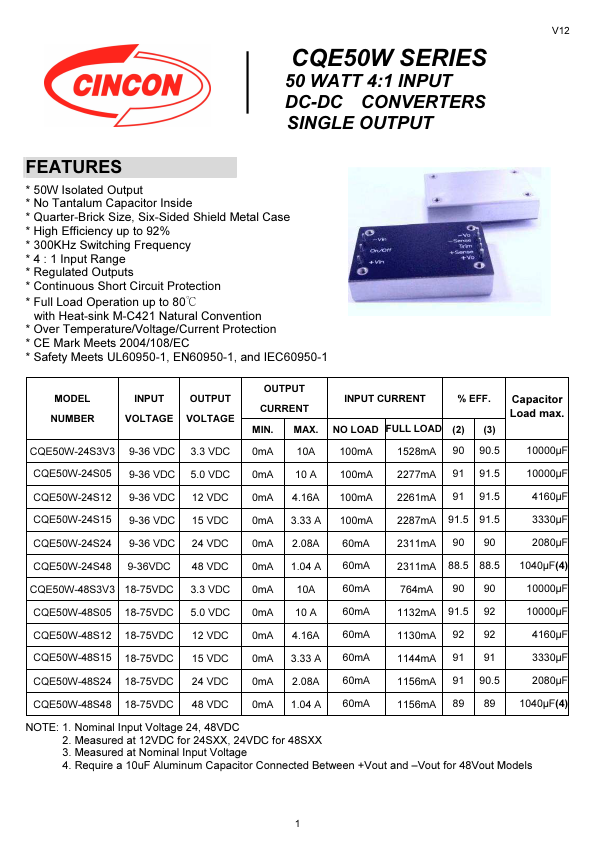

datasheet Preview Page 1 from Datasheet4u.com

CQE50W-24S3V3-CINCON.pdf

CQE50W-24S05 Datasheet Preview — This datasheet PDF includes multiple part numbers: CQE50W-24S05, CQE50W-24S3V3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CQE50W-24S05, CQE50W-24S3V3

Manufacturer:

CINCON

File Size:

189.79 KB

Description:

DC-DC CONVERTERS

Note:

This datasheet PDF includes multiple part numbers: CQE50W-24S05, CQE50W-24S3V3.
Please refer to the document for exact specifications by model.

Features

* 50W Isolated Output
* No Tantalum Capacitor Inside
* Quarter-Brick Size, Six-Sided Shield Metal Case
* High Efficiency up to 92%
* 300KHz Switching Frequency
* 4 : 1 Input Range
* Regulated Outputs
* Continuous Short Circuit Protection
* Full Load Operation up t
