CQE50W-24S48, CQE50W-24S3V3 DC-DC CONVERTERS

CINCON

Description

V12 ︳CQE50W SERIES 50 WATT 4:1 INPUT DC-DC CONVERTERS SINGLE OUTPUT .

📥 Download Datasheet

CQE50W-24S48 Datasheet Preview — This datasheet PDF includes multiple part numbers: CQE50W-24S48, CQE50W-24S3V3. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CQE50W-24S48, CQE50W-24S3V3
Manufacturer: CINCON
File Size: 189.79 KB
Datasheet: CQE50W-24S3V3-CINCON.pdf
Description: DC-DC CONVERTERS
Note: This datasheet PDF includes multiple part numbers: CQE50W-24S48, CQE50W-24S3V3.
Please refer to the document for exact specifications by model.

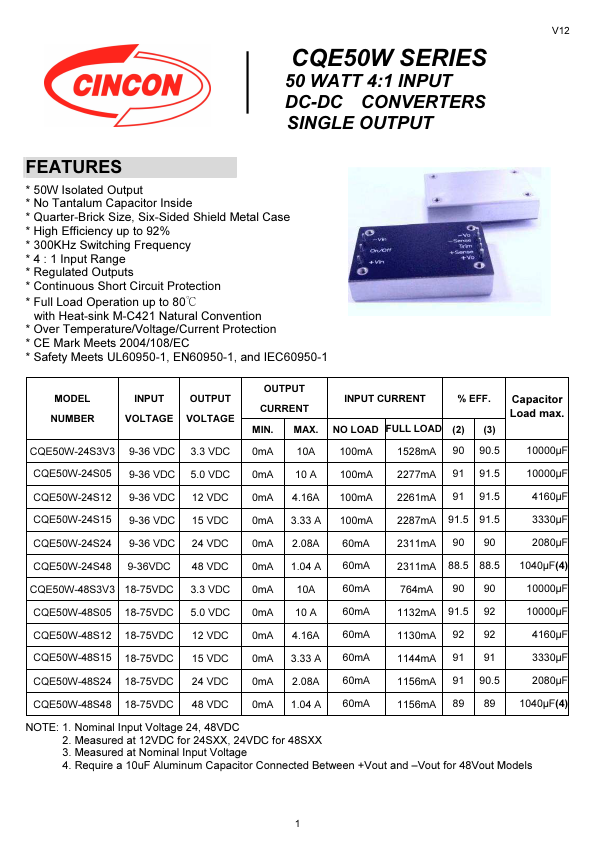

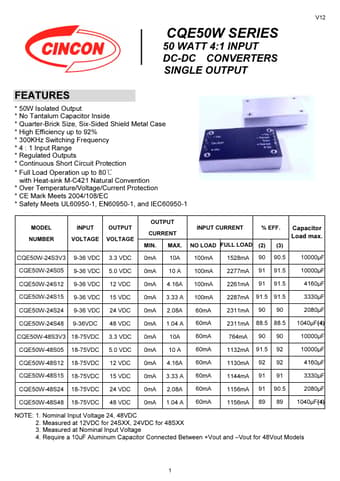

Features

* 50W Isolated Output
* No Tantalum Capacitor Inside
* Quarter-Brick Size, Six-Sided Shield Metal Case
* High Efficiency up to 92%
* 300KHz Switching Frequency
* 4 : 1 Input Range
* Regulated Outputs
* Continuous Short Circuit Protection
* Full Load Operation up t
