CQE50W-48S24, CQE50W-24S3V3 - DC-DC CONVERTERS

CINCON

📥 Download Datasheet

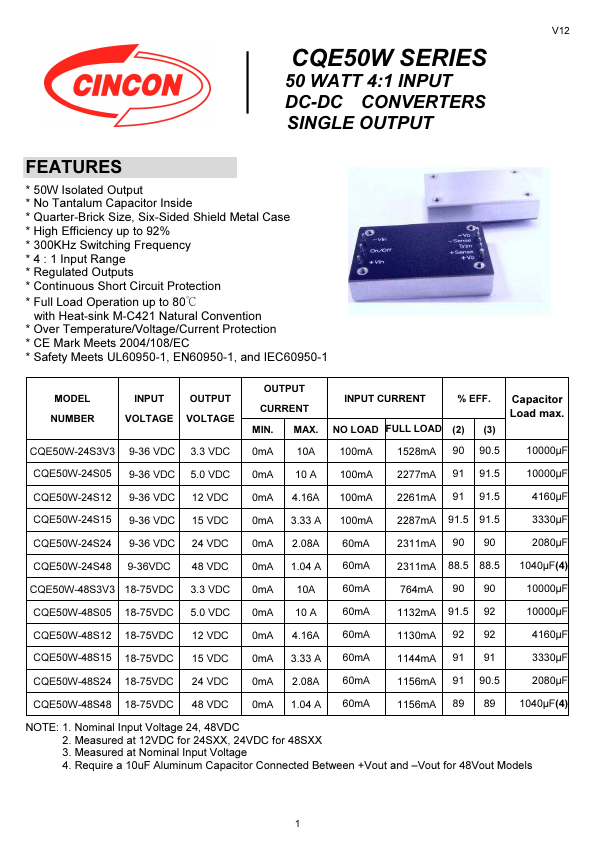

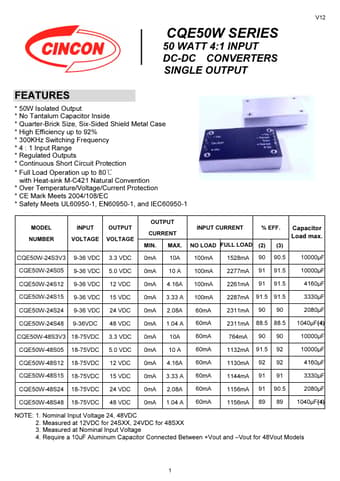

CQE50W-48S24 Datasheet Preview — This datasheet PDF includes multiple part numbers: CQE50W-48S24, CQE50W-24S3V3. Please refer to the document for exact specifications by model.

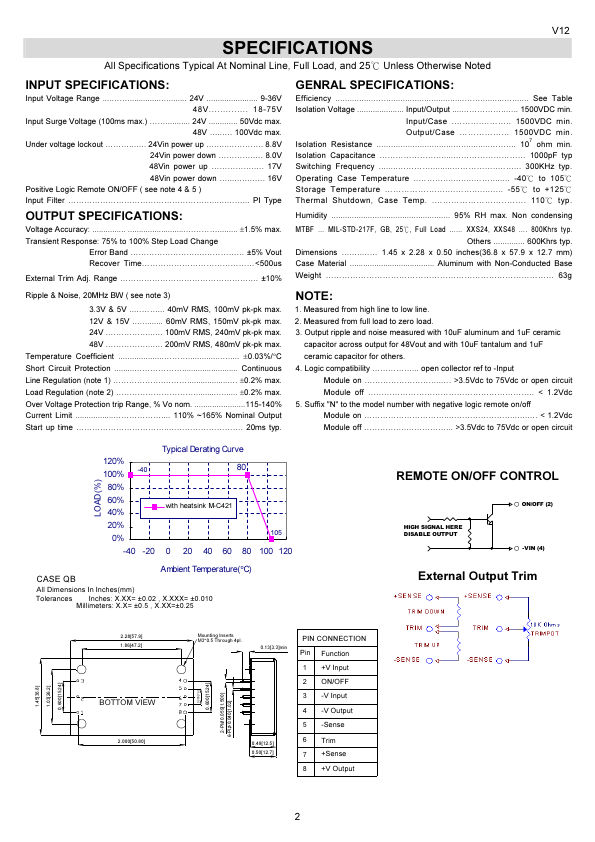

datasheet Preview Page 2

Datasheet Details

Part number	CQE50W-48S24, CQE50W-24S3V3
Manufacturer	CINCON
File Size	189.79 KB
Description	DC-DC CONVERTERS
Datasheet	CQE50W-24S3V3-CINCON.pdf
Note	This datasheet PDF includes multiple part numbers: CQE50W-48S24, CQE50W-24S3V3. Please refer to the document for exact specifications by model.

CQE50W-48S24 Product details

Features

50W Isolated Output.
No Tantalum Capacitor Inside.
Quarter-Brick Size, Six-Sided Shield Metal Case.
High Efficiency up to 92%.
300KHz Switching Frequency.
4 : 1 Input Range.
Regulated Outputs.
Continuous Short Circuit Protection.
Full Load Operation up to 80℃ with Heat-sink M-C421 Natural Convention.
Over Temperature/Voltage/Current Protection.
CE Mark Meets 2004/108/EC.
Safety Meets UL60950-1, EN60950-1, and IEC60950-1 MODEL NUMBER.
