CHT-HYPERION

High Temperature Half-Bridge Driver

CHT-HYPERION Features

* Fast rise and fall times

* Output peak current in excess of 1A

* Floating High-side driver sustain boost voltages of up to 50 V

* Integrated High-Side Bootstrap Diode

* All-in-one synchronous buck driver

* Adaptive non-overlap circuit

* Output enable control

* Low-s

CHT-HYPERION General Description

CHT-HYPERION is a high-side and lowside driver for power N-channel MOSFETs in DC-DC converters and electric motor control. With typical on-resistances of 1, both outputs can drive 1nF loads with 40ns propagation delays and 15ns transition times at 200°C. An adaptive non-overlap circuit reduces swit.

CHT-HYPERION Datasheet (1.00 MB)

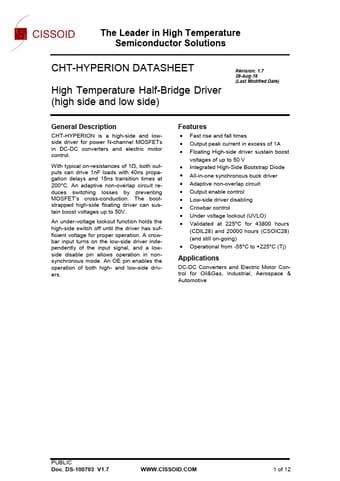

Preview of CHT-HYPERION PDF

Datasheet Details

Part number:

CHT-HYPERION

Manufacturer:

CISSOID

File Size:

1.00 MB

Description:

High temperature half-bridge driver.
The Leader in High Temperature Semiconductor Solutions CHT-HYPERION DATASHEET High Temperature Half-Bridge Driver (high side and low side) Revision:.
