CHT-OPA Datasheet - CISSOID

High-Temperature General-Purpose Quad Operational Amplifier

CHT-OPA Features

* Qualified from -55 to +225°C (Tj)

* 4.5 to 20V supply voltages

* Single or symmetrical supply operation

* Latchup-free at any supply and tem- perature condition

* Validated at 225°C for 30000 hours (and still on-going)

* Available in DIL14 and SOIC16 her- metic ceramic stan

CHT-OPA General Description

The CHT-OPA is a general-purpose quad operational amplifier for applications over the temperature range from -55 to 225°C. The CHT-OPA can operate with both single and symmetrical power supplies. The supply voltages range goes from 4.5 to 20V. The CHT-OPA uses internal metal lines presenting extreme.

CHT-OPA Datasheet (231.46 KB)

Preview of CHT-OPA PDF

Datasheet Details

Part number:

CHT-OPA

Manufacturer:

CISSOID

File Size:

231.46 KB

Description:

High-temperature general-purpose quad operational amplifier.
The Leader in High Temperature Semiconductor Solutions CHT-OPA DATASHEET Revision: 2.5 Dec. 30, 2014 High-Temperature General-Purpose Quad Operati.

📁 Related Datasheet

CHT-100SF Coaxial SMA Female Terminations (Component General)

CHT-100SM (CHT-xxSM) Coaxial SMA Male Terminations (Component General)

CHT-15-2SF Coaxial SMA Female Terminations (Component General)

CHT-15-2SM (CHT-xxSM) Coaxial SMA Male Terminations (Component General)

CHT-150-1SF Coaxial SMA Female Terminations (Component General)

CHT-150-1SM (CHT-xxSM) Coaxial SMA Male Terminations (Component General)

CHT-150NF Coaxial N Female Terminations (Component General)

CHT-150NM (CHT-xxNM) Coaxial N Male Terminations (Component General)

CHT-150SF Coaxial SMA Female Terminations (Component General)

CHT-150SM (CHT-xxSM) Coaxial SMA Male Terminations (Component General)

TAGS

CHT-OPA High-Temperature General-Purpose Quad Operational Amplifier CISSOID

Image Gallery

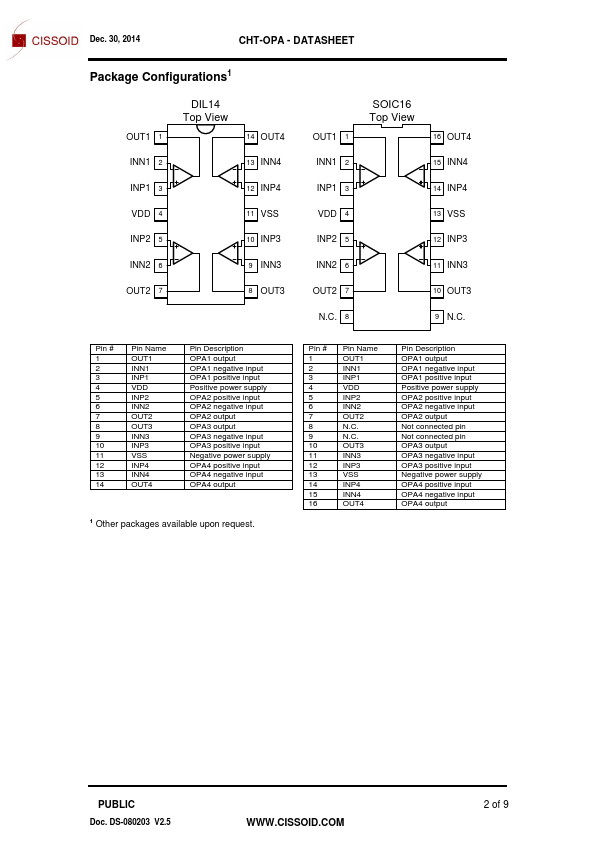

CHT-OPA Datasheet Preview Page 2 CHT-OPA Datasheet Preview Page 3
