CR1102V Datasheet - CIT

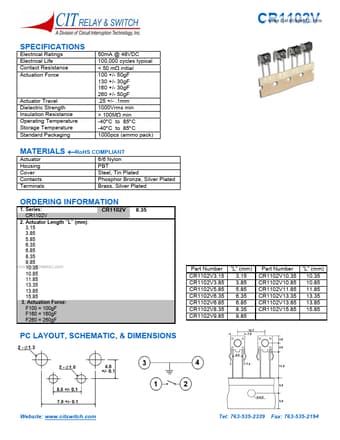

CR1102V SCHEMATIC / PC LAYOUT / DIMENSIONS

CR1102V SPECIFICATIONS Electrical Ratings Electrical Life Contact Resistance Actuation Force 50mA @ 48VDC 100,000 cycles typical < 50 mΩ initial 100 +/- 50gF 130 +/- 30gF 160 +/- 30gF 260 +/- 50gF .25 +/- .1mm 1000Vrms min > 100MΩ min -40°C to 85°C -40°C to 85°C 1000pcs (ammo pack) Actuator Travel Dielectric Strength Insulation Resistance Operating Temperature Storage Temperature Standard Packaging MATERIALS ←RoHS COMPLIANT Actuator Housing Cover Contacts Terminals 6/6 Nylon PBT Steel, Tin Pla.

CR1102V Datasheet (164.14 KB)

CR1102V Datasheet Preview — Preview of CR1102V PDF

Datasheet Details

Part number:

CR1102V

Manufacturer:

CIT

File Size:

164.14 KB

Description:

Schematic / pc layout / dimensions.
