C10U60CT - Trench Schottky Rectifier

CITC

The C10U60CT by CITC is a Trench Schottky Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

C10U60CT Trench Schottky Rectifier by CITC - Datasheet Preview — Official preview page of the C10U60CT Trench Schottky Rectifier datasheet (CITC).

Datasheet Details

Part number	C10U60CT
Manufacturer	CITC
File Size	467.01 KB
Description	Trench Schottky Rectifier
Datasheet	C10U60CT-CITC.pdf

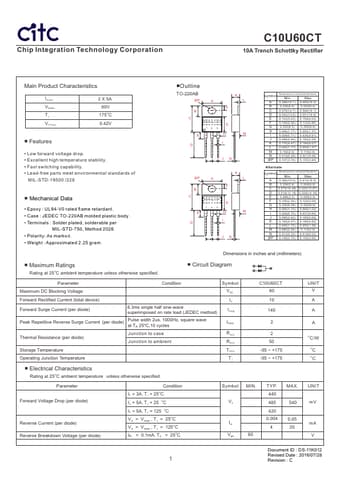

Additional preview pages of the C10U60CT datasheet.

C10U60CT Product details

Features

Low forward voltage drop.
Excellent high temperature stability.
Fast switching capability.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical Data.
Epoxy : UL94-V0 rated ﬂame retardant.
Case : JEDEC TO-220AB molded plastic body.
Terminals : Solder plated, solderable per MIL-STD-750, Method 202. 6.
Polarity: As marked.
Weight : Approximated 2.25 gram.
Outline TO-220AB.
