C34AG - Trench Schottky Rectifier

CITC

The C34AG by CITC is a Trench Schottky Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

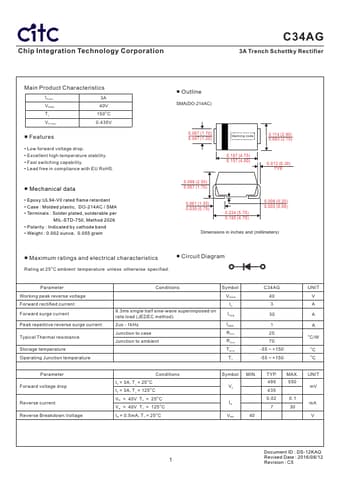

C34AG Trench Schottky Rectifier by CITC - Datasheet Preview — Official preview page of the C34AG Trench Schottky Rectifier datasheet (CITC).

Datasheet Details

Part number	C34AG
Manufacturer	CITC
File Size	488.31 KB
Description	Trench Schottky Rectifier
Datasheet	C34AG-CITC.pdf
Additional preview pages of the C34AG datasheet.

C34AG Product details

Features

s.
Low forward voltage drop.
Excellent high temperature stability.
Fast switching capability.
Lead free in compliance with EU RoHS.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-214AC / SMA.
Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity : Indicated by cathode band.
Weight : 0.002 ounce, 0.055 gram.
Outline SMA(DO-214AC) 0.067 (1.70) 0.
