CD10100CT - High Voltage Power Rectifier

Datasheet Summary

Features

  • s.
  • Low forward voltage drop.
  • Excellent high temperature stability.
  • Fast switching capability.
  • Suffix "G" indicates Halogen-free part, ex. CD10100CTG.
  • Lead-free parts meet environmental standards of MIL-STD-19500 /228.
  • Mechanical data.
  • Epoxy : UL94-V0 rated flame retardant.
  • Case : Molded plastic, DPAK / TO-252.
  • Lead : Solder plated, solderable per MIL-STD-750, Method 2026.
  • Polarity: Indicated by cathode b.

📥 Download Datasheet

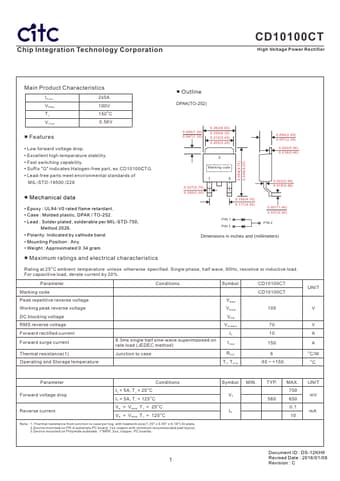

Datasheet preview – CD10100CT

Datasheet Details

Part number CD10100CT
Manufacturer CITC
File Size 75.20 KB
Description High Voltage Power Rectifier
Datasheet download datasheet CD10100CT Datasheet
Additional preview pages of the CD10100CT datasheet.

📁 Similar Datasheet

Other Datasheets by CITC

Full PDF Text Transcription

Click to expand full text
Chip Integration Technology Corporation CD10100CT High Voltage Power Rectifier Main Product Characteristics IF(AV) VRRM TJ V(Typ) 2x5A 100V 150OC 0.56V ■ Features • Low forward voltage drop. • Excellent high temperature stability. • Fast switching capability. • Suffix "G" indicates Halogen-free part, ex.CD10100CTG. • Lead-free parts meet environmental standards of MIL-STD-19500 /228 ■ Mechanical data • Epoxy : UL94-V0 rated flame retardant. • Case : Molded plastic, DPAK / TO-252. • Lead : Solder plated, solderable per MIL-STD-750, Method 2026. • Polarity: Indicated by cathode band. • Mounting Position : Any. • Weight : Approximated 0.34 gram. ■ Maximum ratings and electrical characteristics ■ Outline DPAK(TO-252) 0.059(1.50) 0.047(1.20) 0.262(6.65) 0.250(6.35) 0.212(5.40) 0.205(5.
