CD10L100S - Trench Schottky Rectifier

Product Overview

CITC

📥 Download Datasheet

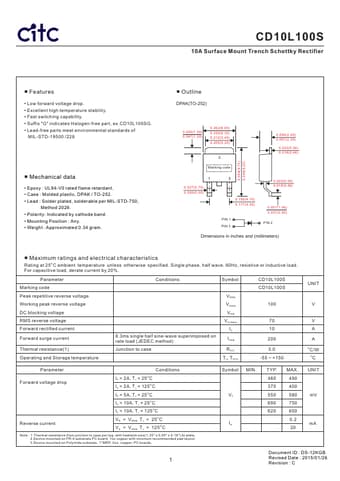

CD10L100S Trench Schottky Rectifier by CITC - Datasheet Preview — Datasheet preview – CD10L100S

Datasheet Details

Part number	CD10L100S
Manufacturer	CITC
File Size	452.12 KB
Description	Trench Schottky Rectifier
Datasheet	CD10L100S Datasheet
Additional preview pages of the CD10L100S datasheet.

Product details

Features

s.
Low forward voltage drop.
Excellent high temperature stability.
Fast switching capability.
Suffix "G" indicates Halogen-free part, ex. CD10L100SG.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy : UL94-V0 rated flame retardant.
Case : Molded plastic, DPAK / TO-252.
Lead : Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity: Indicated by cathode ba.
