CL36AG - Trench Schottky Rectifier

CITC

The CL36AG by CITC is a Trench Schottky Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

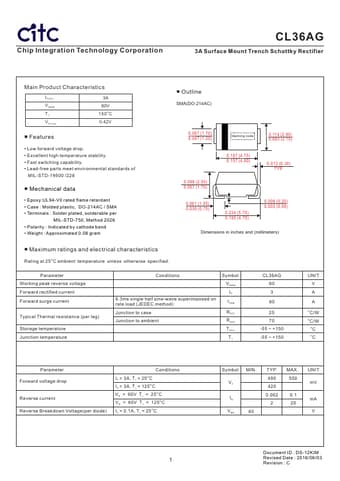

CL36AG Trench Schottky Rectifier by CITC - Datasheet Preview — Official preview page of the CL36AG Trench Schottky Rectifier datasheet (CITC).

Datasheet Details

Part number	CL36AG
Manufacturer	CITC
File Size	486.57 KB
Description	Trench Schottky Rectifier
Datasheet	CL36AG-CITC.pdf
Additional preview pages of the CL36AG datasheet.

CL36AG Product details

Features

s.
Low forward voltage drop.
Excellent high temperature stability.
Fast switching capability.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-214AC / SMA.
Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity : Indicated by cathode band.
Weight : Approximated 0.08 gram.
Outline SM.
