CST3040CT - 30A Trench Low Barrier Diode

Product Overview

CITC

📥 Download Datasheet

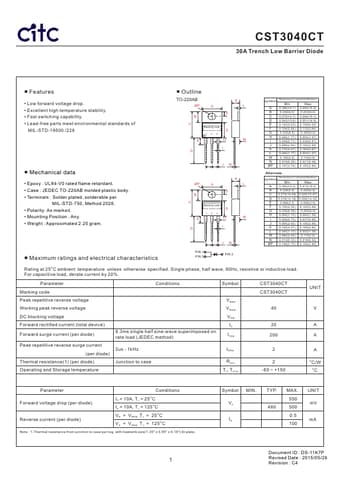

CST3040CT 30A Trench Low Barrier Diode by CITC - Datasheet Preview — Datasheet preview – CST3040CT

Datasheet Details

Part number	CST3040CT
Manufacturer	CITC
File Size	452.68 KB
Description	30A Trench Low Barrier Diode
Datasheet	CST3040CT Datasheet
Additional preview pages of the CST3040CT datasheet.

Product details

Features

s.
Low forward voltage drop.
Excellent high temperature stability.
Fast switching capability.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy : UL94-V0 rated flame retardant.
Case : JEDEC TO-220AB molded plastic body.
Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity: As marked.
Mounting Position : Any.
Weight : Approximated.
