CST306-1T, CST206-1A Current Sense Transformers

CST306-1T Description

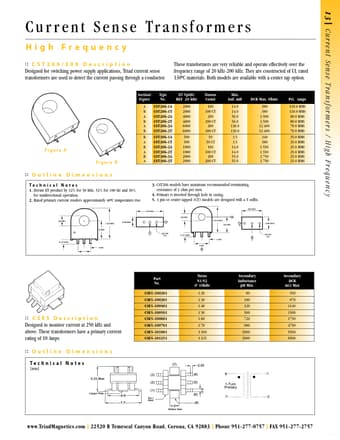

1 3 | Current Sense Transformers / High Frequency C u r r e n t S e n s e Tr a n s f o r m e r s High Frequency :: C S T 2 0 6 / 3 0 6 D e s c r i p .

CST306-1T Applications

* Triad current sense transformers are used to detect the current passing through a conductor. Section/ Figure A B A B A B B A B A B A Type No. CST206-1A CST206-1T CST206-2A CST206-2T CST206-3A CST206-3T CST306-1A CST306-1T CST306-2A CST306-2T CST306-3A CST306-3T These transformers are very reliable

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CST306-1T, CST206-1A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
CST306-1T, CST206-1A
Manufacturer
Triad Magnetics
File Size
484.89 KB
Datasheet
CST206-1A-TriadMagnetics.pdf
Description
Current Sense Transformers
Note
This datasheet PDF includes multiple part numbers: CST306-1T, CST206-1A.
Please refer to the document for exact specifications by model.
