CST328 Datasheet - Hynitron

CST328 High performance mutual capacitance multi-touch chip

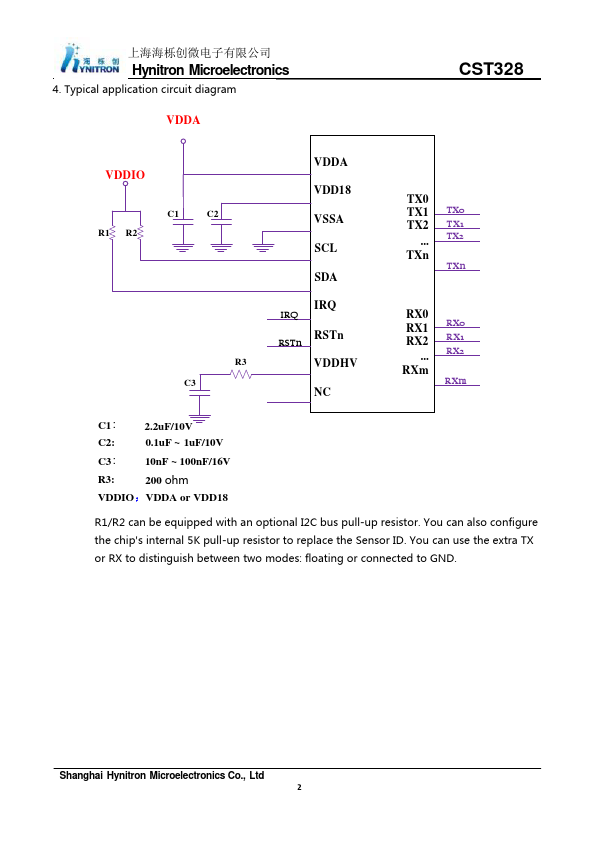

Pin Name Type Function Description Pin Name 1 RX0 I/O Capacitive Rx/Tx Channel 21 RSTn 2 RX1 I/O Capacitive Rx/Tx Channel 22 TX0 3 RX2 I/O Capacitive Rx/Tx Channel 23 TX1 4 RX3 I/O Capacitive Rx/Tx Channel 24 TX2 5 RX4 I/O Capacitive Rx/Tx Channel 25 TX3 6 RX5 I/O Capacitive Rx/Tx.

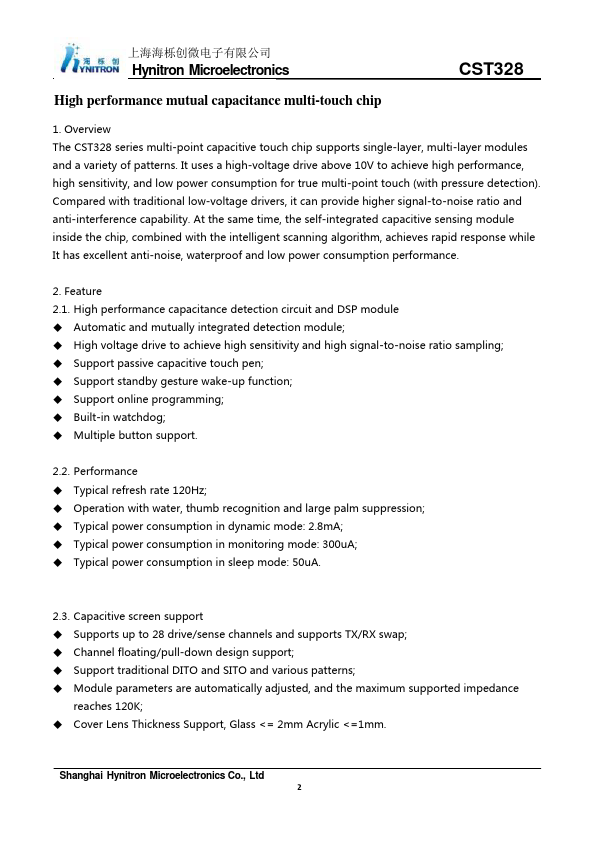

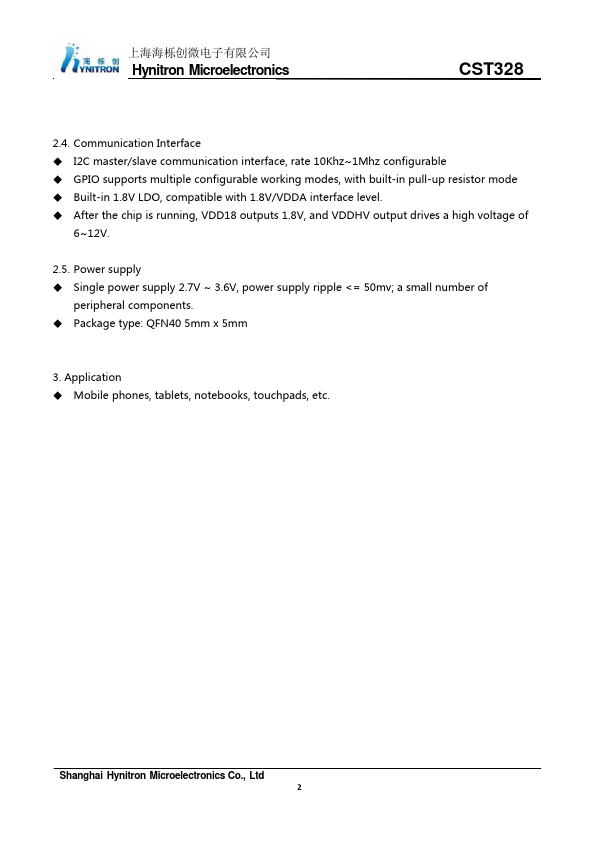

Hynitron Microelectronics CST328 High performance mutual capacitance multi-touch chip 1. Overview The CST328 series multi-point capacitive touch chip supports single-layer, multi-layer modules and a variety of patterns. It uses a high-voltage drive above 10V to achieve high performance, high sensitivity, and low power consumption for true multi-point touch (with pressure detection). Compared with traditional low-voltage drivers, it can provide higher signal-to-noise ratio and anti-interferen.

CST328 Datasheet (400.41 KB)

Preview of CST328 PDF
CST328 Datasheet Preview Page 2 CST328 Datasheet Preview Page 3

Datasheet Details

Part number:

CST328

Manufacturer:

Hynitron

File Size:

400.41 KB

Description:

High performance mutual capacitance multi-touch chip.
