CST3.58MGW CERAMIC RESONATOR

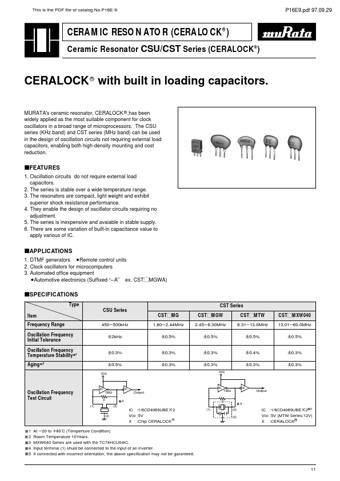

This is the PDF file of catalog No.P16E-9. CERAMIC RESONATOR (CERALOCK®) Ceramic Resonator CSU/CST Series (CERALOCK®) P16E9.pdf 97.09.29 CERALOCK R with built in loading capacitors. MURATA's ceramic resonator, CERALOCK R ,has been widely applied as the most suitable component for clock oscillators in a broad range of microprocessors. The CSU series (KHz band) and CST series (MHz band) can be used in the design of oscillation circuits not requiring external load capacitors, enabling both high-.

CST3.58MGW Features

* 1. Oscillation circuits do not require external load capacitors. 2. The series is stable over a wide temperature range. 3. The resonators are compact, light weight and exhibit superior shock resistance performance. 4. They enable the design of oscillator circuits requiring no adjustment. 5. The seri
