CST816S Datasheet - Hynitron

CST816S High performance self-capacitance touch chip

CST816S Data sheet Pin name S1~S13 VDDA CMOD0/CMOD1 IRQ SCL/SDA RST Description Sensing channels Power supply Stabilizing capacitor Interrupt output I2C Reset input Remarks 2.7V~3.6V, connect 2.2uF~10uF capacitor Connection 1nF~5.6nF stabilizing capacitor Up/Down edge optional Optional internal .

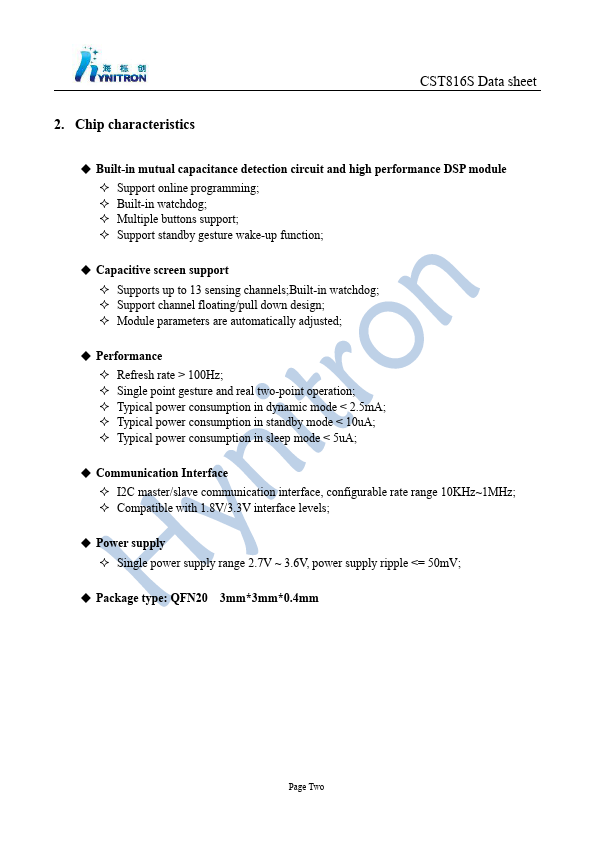

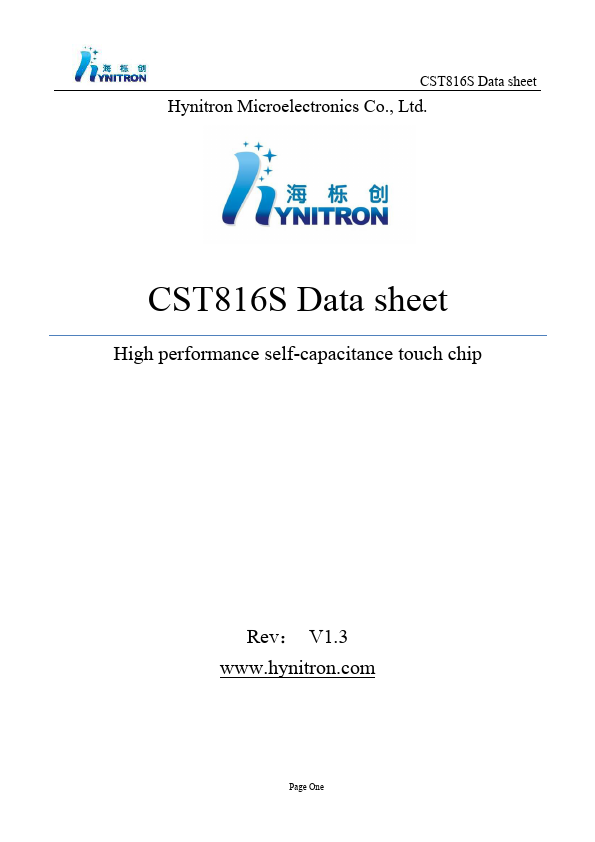

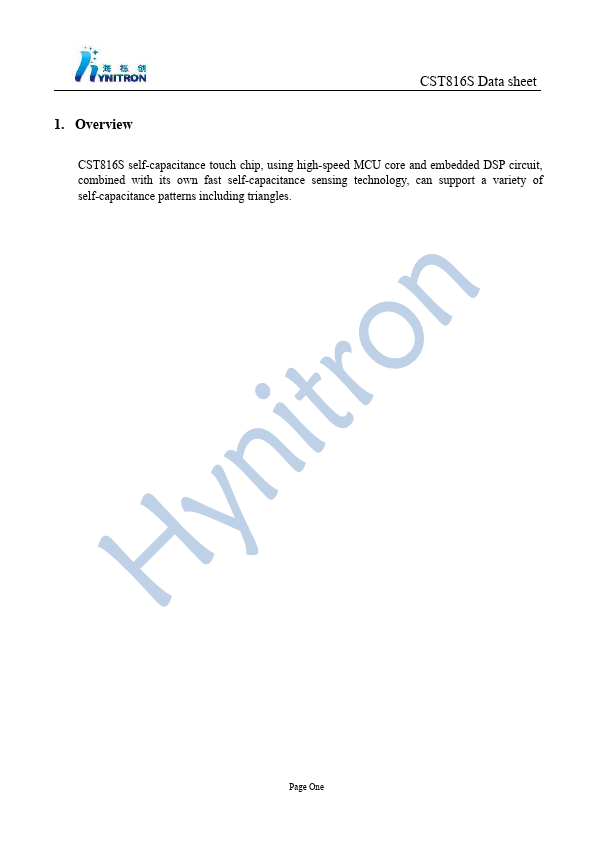

CST816S Data sheet Hynitron Microelectronics Co., Ltd. CST816S Data sheet High performance self-capacitance touch chip Rev: V1.3 www.hynitron.com Page One CST816S Data sheet 1. Overview CST816S self-capacitance touch chip, using high-speed MCU core and embedded DSP circuit, combined with its own fast self-capacitance sensing technology, can support a variety of self-capacitance patterns including triangles. Page One CST816S Data sheet 2. Chip characteristics Built-in mutual capacitance d.

CST816S Datasheet (574.69 KB)

Preview of CST816S PDF
CST816S Datasheet Preview Page 2 CST816S Datasheet Preview Page 3

Datasheet Details

Part number:

CST816S

Manufacturer:

Hynitron

File Size:

574.69 KB

Description:

High performance self-capacitance touch chip.
