CST340 Datasheet - Hynitron

CST340 High performance mutual capacitance touch controller

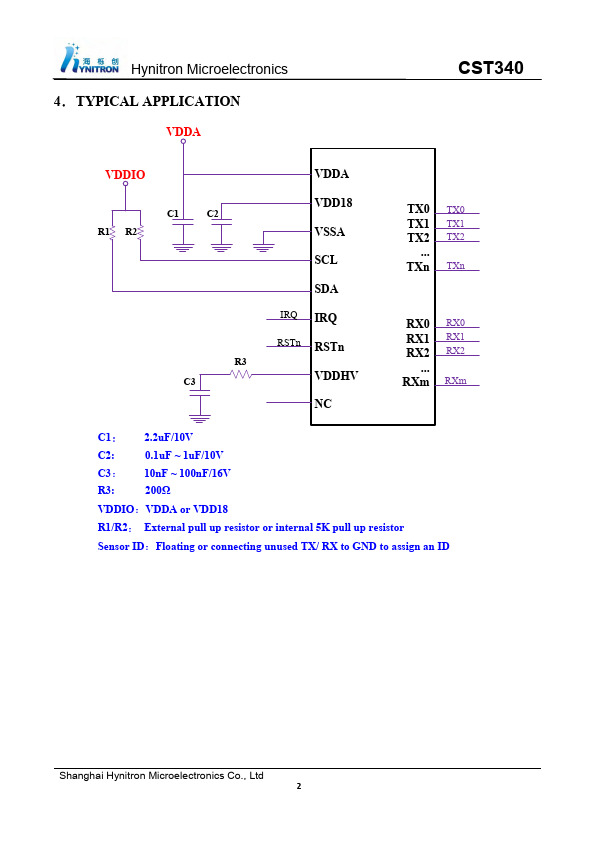

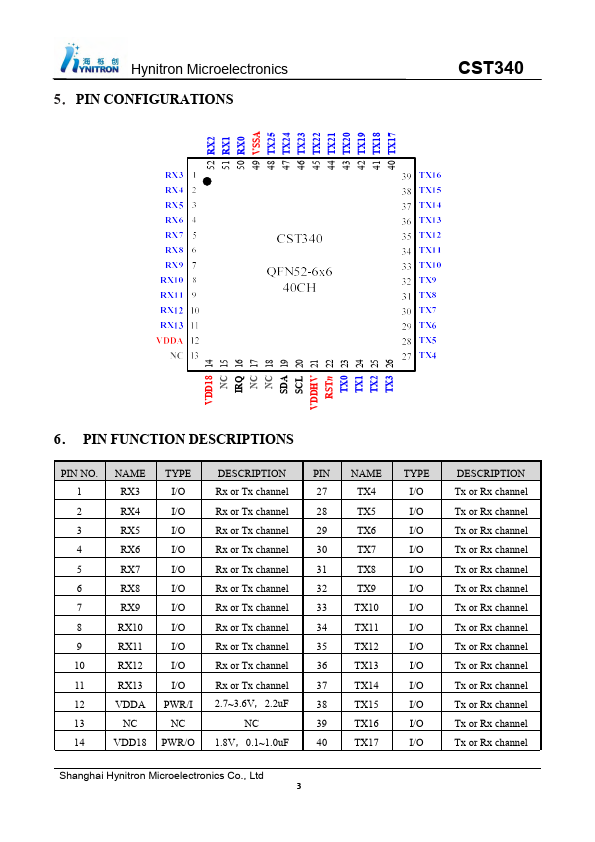

PIN NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 NAME RX3 RX4 RX5 RX6 RX7 RX8 RX9 RX10 RX11 RX12 RX13 VDDA NC VDD18 TYPE I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O PWR/I NC PWR/O DESCRIPTION Rx or Tx channel Rx or Tx channel Rx or Tx channel Rx or Tx channel Rx or Tx channel Rx or Tx channel Rx or Tx .

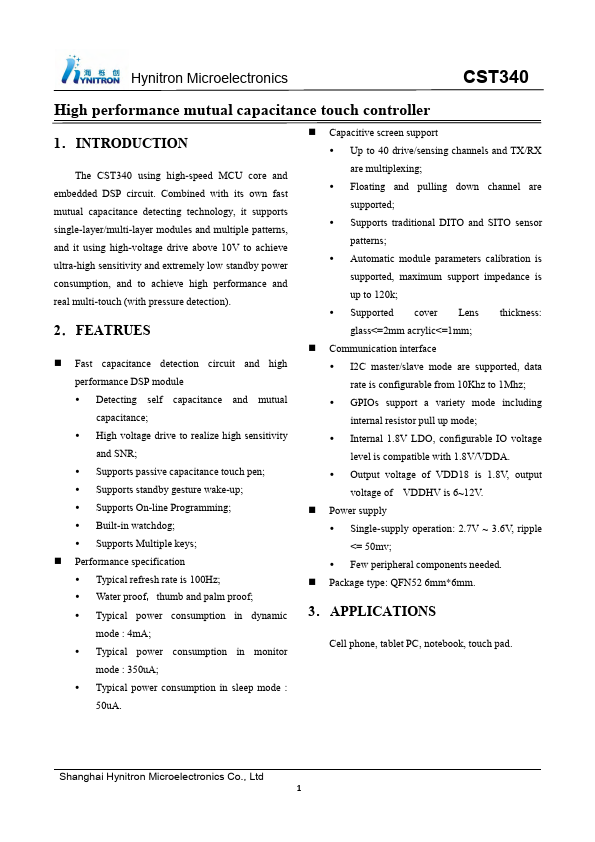

Hynitron Microelectronics CST340 High performance mutual capacitance touch controller 1.INTRODUCTION The CST340 using high-speed MCU core and embedded DSP circuit. Combined with its own fast mutual capacitance detecting technology, it supports single-layer/multi-layer modules and multiple patterns, and it using high-voltage drive above 10V to achieve ultra-high sensitivity and extremely low standby power consumption, and to achieve high performance and real multi-touch (with pressure detectio.

CST340 Datasheet (2.12 MB)

Preview of CST340 PDF
CST340 Datasheet Preview Page 2 CST340 Datasheet Preview Page 3

Datasheet Details

Part number:

CST340

Manufacturer:

Hynitron

File Size:

2.12 MB

Description:

High performance mutual capacitance touch controller.
