DF110, DF1005 - 1A Miniature Glass Passivated Single-Phase Bridge Rectifiers

DF110 Description

DF1005 THRU DF110 1A Miniature Glass Passivated Single-Phase Bridge Rectifiers * .

DF110 Features

* Surge overload ratings to 30 amperes peak.

DF110 Applications

* Ideal for & save space on printed circuit board.
* Applicable for automatic insertion.
* Reliable low cost construction utilizing molded plastic technology results in inexpensive product.
* Glass passivated chip junctions.
* Suffix "G" indicates Halogen-fre

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF110, DF1005. Please refer to the document for exact specifications by model.

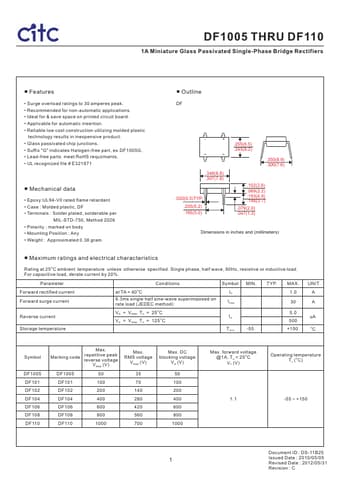

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF110, DF1005
Manufacturer
CITC
File Size
137.33 KB
Datasheet
DF1005-CITC.pdf
Description
1A Miniature Glass Passivated Single-Phase Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: DF110, DF1005.
Please refer to the document for exact specifications by model.
