ER101, ER1005 Super Fast Rectifier

ER101 Description

Super Fast Rectifier Chip Integration Technology Corporation ER1005 THRU ER110 1 Amperes Leaded Type Super Fast Rectifiers VOLTAGE : 50 TO 1000Volts.

ER101 Features

* Outline
* Axial lead type devices for through hole design.
* High current capability.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ER101, ER1005. Please refer to the document for exact specifications by model.

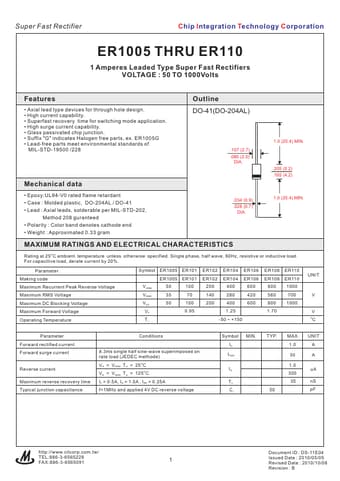

datasheet Preview Page 2

Datasheet Details

Part number
ER101, ER1005
Manufacturer
CITC
File Size
50.37 KB
Datasheet
ER1005-CITC.pdf
Description
Super Fast Rectifier
Note
This datasheet PDF includes multiple part numbers: ER101, ER1005.
Please refer to the document for exact specifications by model.
