M02N601D

Silicon N-Channel Power MOSFET

M02N601D Features

* 600V, 2.0A, RDS(on) = maximum 5Ω@VGS = 10V.

* 100% avalanche, EAS tested.

* Suffix "G" indicates Halogen-free part, ex.M02N601DG.

* Mechanical data

* Epoxy : UL94-V0 rated flame retardant.

* Case : Molded plastic, DPAK / TO-252.

* Lead : Solder p

M02N601D Datasheet (122.94 KB)

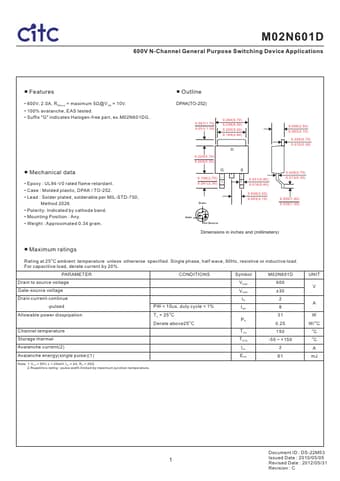

Preview of M02N601D PDF

Datasheet Details

Part number:

M02N601D

Manufacturer:

CITC

File Size:

122.94 KB

Description:

Silicon n-channel power mosfet.
