M02N601D1

Silicon N-Channel Power MOSFET

M02N601D1 Features

* 600V, 2.0A, RDS(on) = maximum 5Ω@VGS = 10V.

* 100% avalanche, EAS tested.

* Suffix "G" indicates Halogen-free part, ex.M02N601D1G.

* Outline TO-251 0.264(6.7) 0.248(6.3) 0.205(5.2) 0.189(4.8) 0.060(1.52) 0.058(1.48) 0.098(2.5) 0.083(2.1) 0.024(0.6) 0.016(0.4) 0.193(

M02N601D1 Datasheet (122.49 KB)

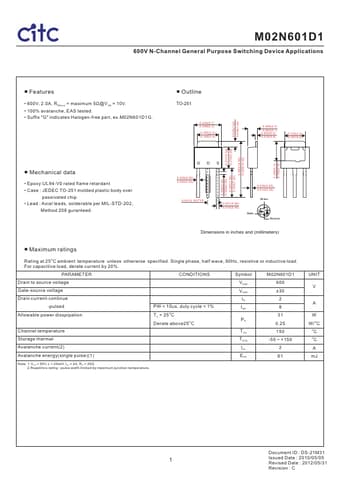

Preview of M02N601D1 PDF

Datasheet Details

Part number:

M02N601D1

Manufacturer:

CITC

File Size:

122.49 KB

Description:

Silicon n-channel power mosfet.
