MB101S, MB1005S 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers

MB101S Description

MB1005S THRU MB110S 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers * .

MB101S Features

* Surge overload ratings to 30 amperes peak.
* Save space on printed circuit board.
* Ideal for automated replacement.
* Reliable low cost construction utilizing molded plastic technology results in inexpensive product.
* Glass passivated chip junctions.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB101S, MB1005S. Please refer to the document for exact specifications by model.

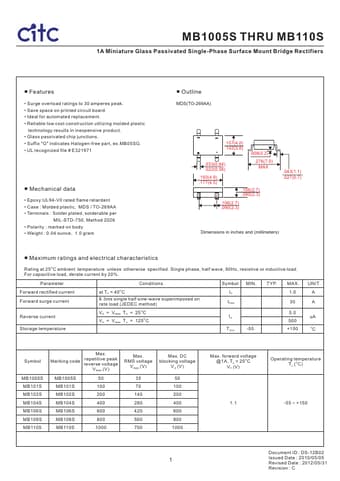

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB101S, MB1005S
Manufacturer
CITC
File Size
137.57 KB
Datasheet
MB1005S-CITC.pdf
Description
1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: MB101S, MB1005S.
Please refer to the document for exact specifications by model.
