MB1010, MB1000 Datasheet - MaxBotix

MB1010 - High Performance Sonar Range Finder

Pin 1-BW- *Leave open or hold low for serial output on the TX output.

When BW pin is held high the TX output sends a pulse (instead of serial data), suitable for low noise chaining.

Pin 2-PW- This pin outputs a pulse width representation of range.

The distance can be calculated using the scale fa

LV-MaxSonar®-EZ™ Series LV-MaxSonar® - EZ™ Series High Performance Sonar Range Finder MB1000, MB1010, MB1020, MB1030, MB1040 With 2.5V - 5.5V power the LV-MaxSonar-EZ provides very short to long-range detection and ranging in a very small package.

The LV-MaxSonar-EZ detects objects from 0-inches to 254-inches (6.45-meters) and provides sonar range information from 6-inches out to 254-inches with 1-inch resolution.

Objects from 0-inches to 6-inches typically range as 6-inches1.

The interface

MB1010 Features

* Continuously variable gain for control and side lobe suppression

* Object detection to zero range objects

* 2.5V to 5.5V supply with 2mA typical current draw

* Readings can occur up to every 50mS, (20-Hz rate)

* Free run operation can continually measure and output range inform

MB1000-MaxBotix.pdf

This datasheet PDF includes multiple part numbers: MB1010, MB1000. Please refer to the document for exact specifications by model.

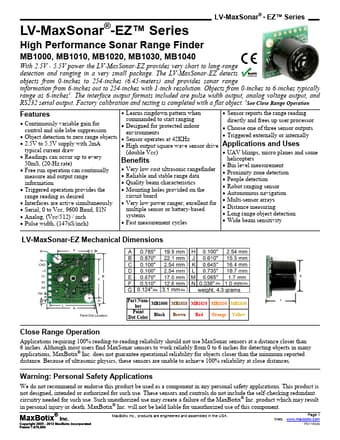

MB1010 Datasheet Preview Page 2 MB1010 Datasheet Preview Page 3
