SB2065CT, SB2040CT - 20A High Power Schottky Barrier Rectifiers

CITC

📥 Download Datasheet

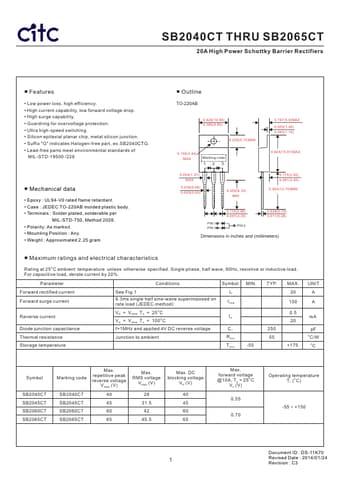

SB2065CT Datasheet Preview — This datasheet PDF includes multiple part numbers: SB2065CT, SB2040CT. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB2065CT, SB2040CT
Manufacturer	CITC
File Size	452.46 KB
Description	20A High Power Schottky Barrier Rectifiers
Datasheet	SB2040CT-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: SB2065CT, SB2040CT. Please refer to the document for exact specifications by model.

SB2065CT Product details

Features

s.
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. SB2040CTG.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy : UL94-V0 rated flame retardant.
