SB2060DC, SB2020DC-WON - 20A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER

WON-TOP

📥 Download Datasheet

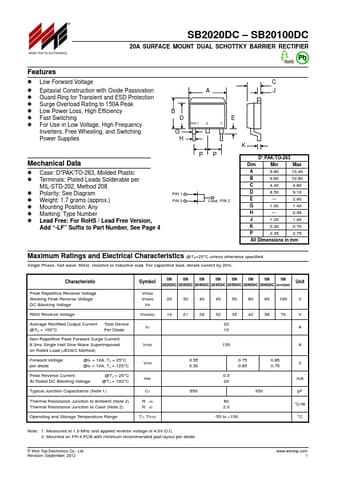

SB2060DC Datasheet Preview — This datasheet PDF includes multiple part numbers: SB2060DC, SB2020DC-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB2060DC, SB2020DC-WON
Manufacturer	WON-TOP
File Size	42.46 KB
Description	20A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB2020DC-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB2060DC, SB2020DC-WON. Please refer to the document for exact specifications by model.

SB2060DC Product details

Features

Low Forward Voltage.
Epitaxial Construction with Oxide Passivation.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 150A Peak.
Low Power Loss, High Efficiency.
Fast Switching.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Switching Power Supplies Mechanical Data.
Case: D2PAK/TO-263, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.7.
