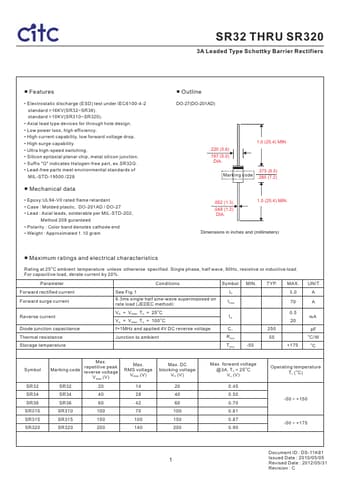

SR32 THRU SR320
3A Leaded Type Schottky Barrier Rectifiers
■ Features
• Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(SR32~SR36). standard >10ΚV(SR310~SR320).
• Axial lead type devices for through hole design. • Low power loss, high efficiency. • High current capability, low forward voltage drop. • High surge capability. • Ultra high-speed switching. • Silicon epitaxial planar chip, metal silicon junction. • Suffix "G" indicates Halogen-free part, ex.SR32G. • Lead-free parts meet environmental standards of
MIL-STD-19500 /228
■ Mechanical data
• Epoxy:UL94-V0 rated flame retardant • Case : Molded plastic, DO-201AD / DO-27 • Lead : Axial leads, solderable per MIL-STD-202,
Method 208 guranteed • Polarity : Color band denotes cathode end • Weight : Approximated 1.
