T0534VL

Low Capacitance ESD Protection Device

T0534VL Datasheet (762.27 KB)

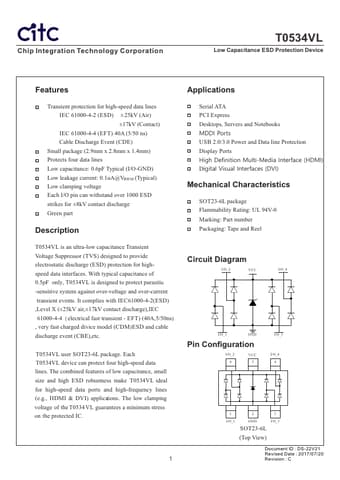

Preview of T0534VL PDF Datasheet

Datasheet Details

Part number:

T0534VL

Manufacturer:

CITC

File Size:

762.27 KB

Description:

Low capacitance esd protection device

T0534VL Features

* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±25kV (Air) ±17kV (Contact) IEC 61000-4-4 (EFT) 40A (5/50 ns) Cable Discharge Event (CDE)

* Small package (2.9mm x 2.8mm x 1.4mm)

* Protects four data lines

* Low capacitance: 0.6pF Typical (I/O-GND)

T0534VL General Description

T0534VL is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for highspeed data interfaces. With typical capacitance of 0.5pF only, T0534VL is designed to protect parasitic -sensitive system against over-voltage and over-current .
