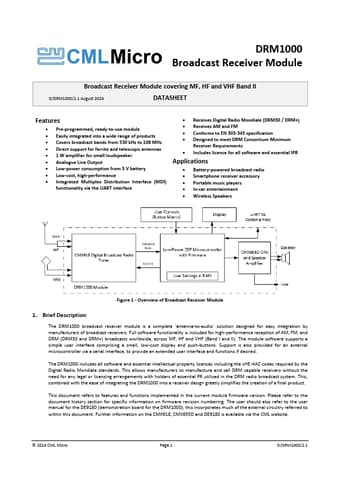

DRM1000 Datasheet Broadcast Receiver Module

Manufacturer: CML

Overview: DRM1000 Broadcast Receiver Module Broadcast Receiver Module covering MF, HF and VHF Band II D/DRM1000/2.

Datasheet Details

Part number DRM1000
Manufacturer CML
File Size 0.99 MB
Description Broadcast Receiver Module
Datasheet DRM1000-CML.pdf

General Description

The DRM1000 broadcast receiver module is a plete ‘antenna-to-audio’ solution designed for easy integration by manufacturers of broadcast receivers.

Full software functionality is included for high-performance reception of AM, FM, and DRM (DRM30 and DRM+) broadcasts worldwide, across MF, HF and VHF (Band I and II).

The module software supports a simple user interface prising a small, low-cost display and push-buttons.

Key Features

  • Pre-programmed, ready-to-use module.
  • Easily integrated into a wide range of products.
  • Covers broadcast bands from 530 kHz to 108 MHz.
  • Direct support for ferrite and telescopic antennas.
  • 1 W amplifier for small loudspeaker.
  • Analogue Line Output.
  • Low-power consumption from 3 V battery.
  • Low-cost, high-performance.
  • Integrated Multiplex Distribution Interface (MDI) functionality via the UART interface.
  • Receive.
