SP43-470K SMD Power Inductor

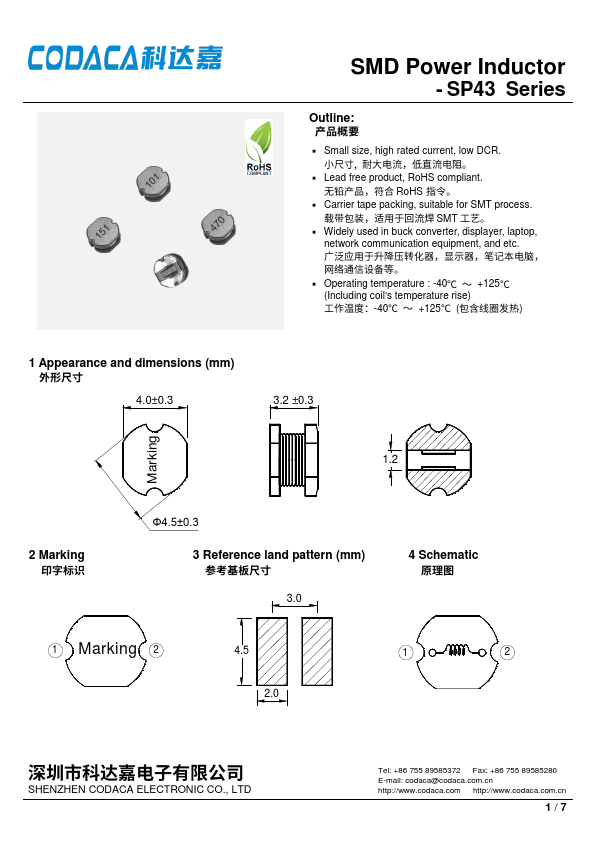

SMD Power Inductor - SP43 Series Outline: Small size, high rated current, low DCR. Lead free product, RoHS compliant. RoHS Carrier tape packing, suitable for SMT process. SMT Widely used in buck converter, displayer, laptop, network communication equipment, and etc. Operating temperature : -40 +125 (Including coil’s temperature rise) -40 +125 ( ) 1 Appearance and dimensions (mm) 4.0±0.3 3.2 ±0.3 1.2 Marking 2 Marking Φ4.5±0.3 3 Reference land pattern (mm) 3.0 4 Schematic 1 Marking .
