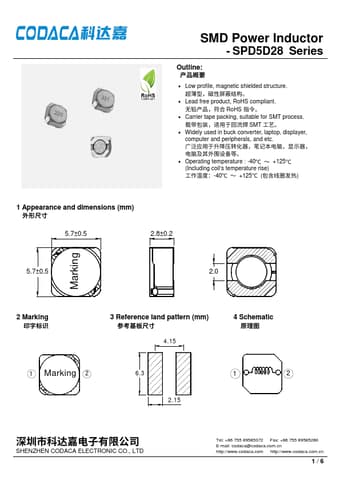

SPD5D28 SMD Power Inductor

SMD Power Inductor - SPD5D28 Series Outline: Low profile, magnetic shielded structure. Lead free product, RoHS compliant. RoHS Carrier tape packing, suitable for SMT process. SMT Widely used in buck converter, laptop, displayer, computer and peripherals, and etc. Operating temperature : -40 +125 (Including coil’s temperature rise) -40 +125 ( ) 1 Appearance and dimensions (mm) 5.7±0.5 2.8±0.2 5.7±0.5 2.0 Marking 2 Marking 3 Reference land pattern (mm) 4.15 4 Schematic 1 Marking 2 .
